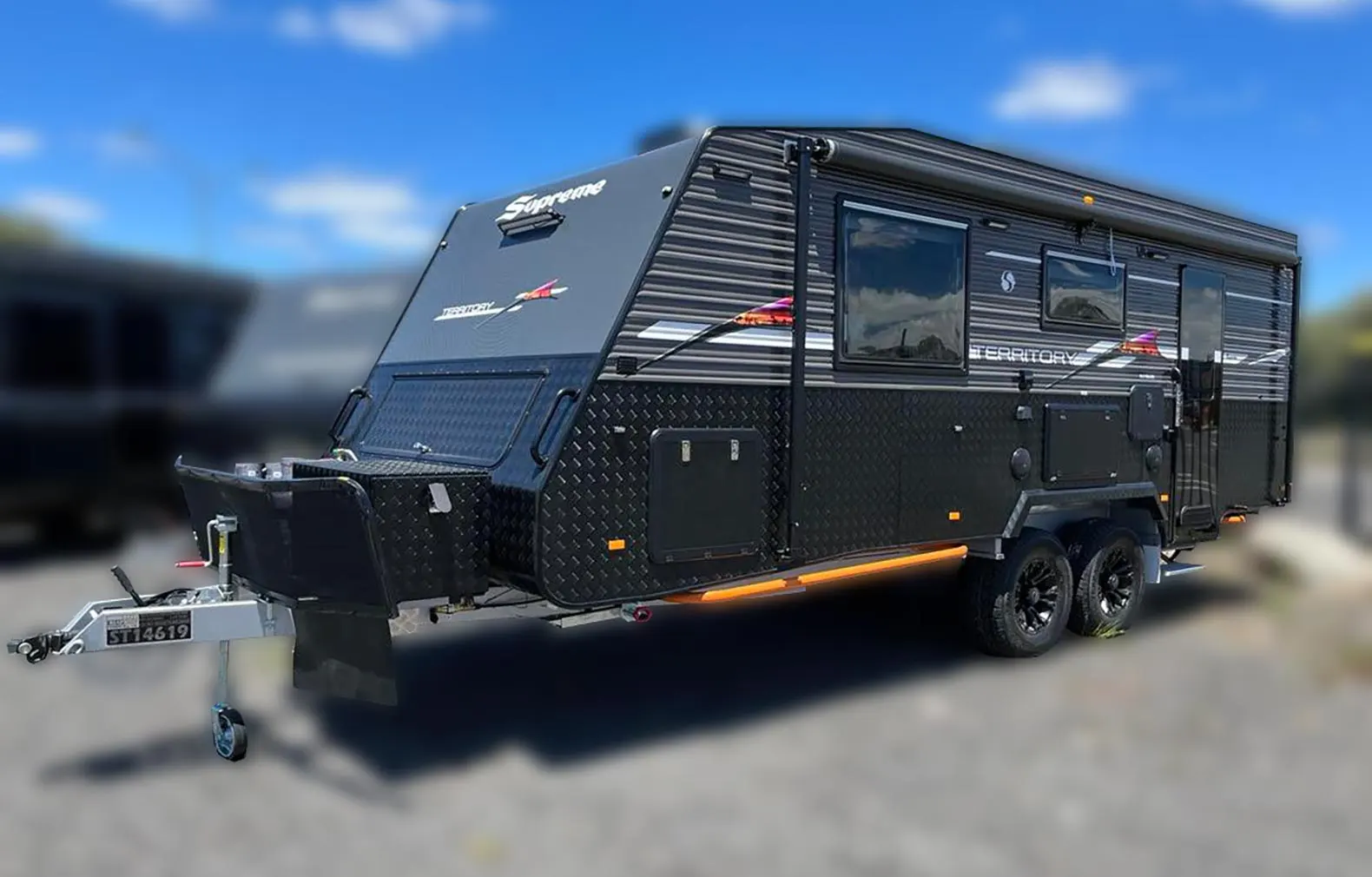

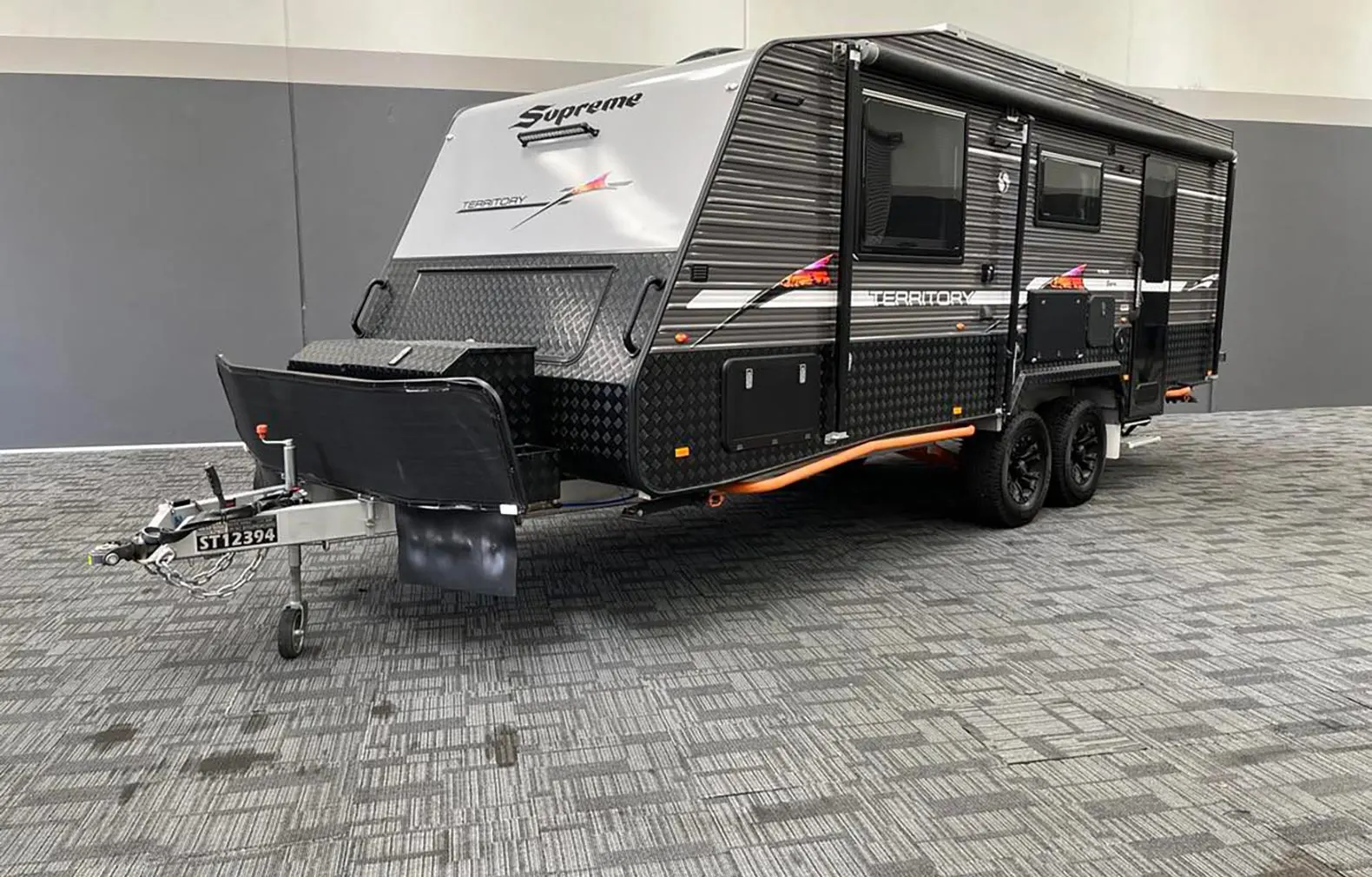

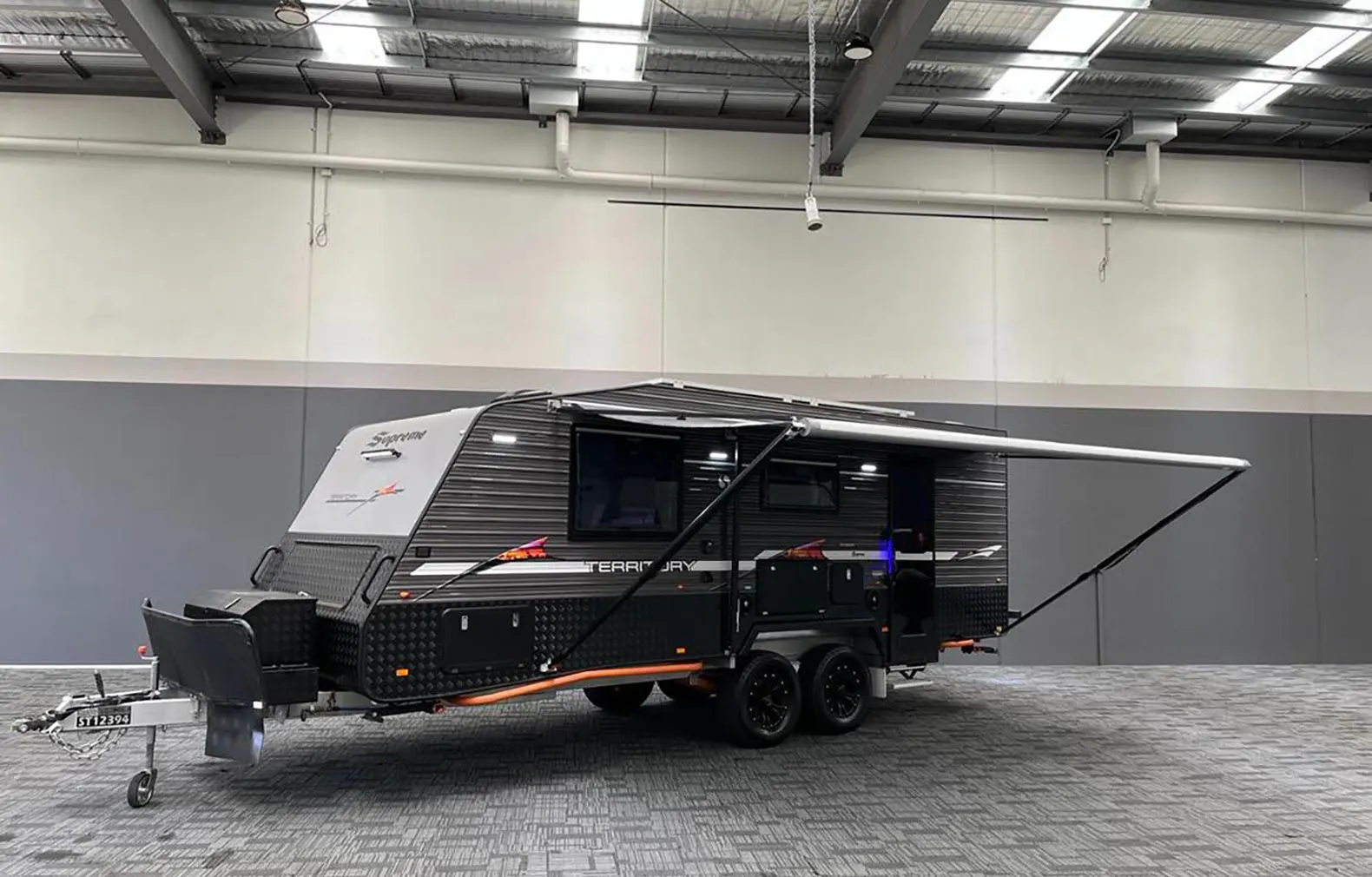

Territory

Supreme’s Territory caravan for sale has been designed to allow access to unsealed and National Park roads. You will be able to reach some of the more remote places of our great land and take the joy of caravanning to the next level. This model also includes a range of creature comforts at no extra cost.

Heavy Duty Chassis

Travelling off the beaten track is made easier than ever with Territory’s strengthened chassis and galvanised undercarriage. All of our chassis are built in-house and are fully welded, not bolted. The box section A frame provides extra strength and the longer frame means that you have a better turning circle, making it easier to reverse.

Feature Packed for Off Road

We have included a number of features in the Territory caravan to ensure that you can take it off road without issue. These include tie down points on the chassis (for high wind areas), checker plate below the front window (to protect from stone damage), extra strong aluminium cladding, full insulation, double glazed European windows, two 95 litre water tanks, and two deep cycle batteries.

Comforts of Home

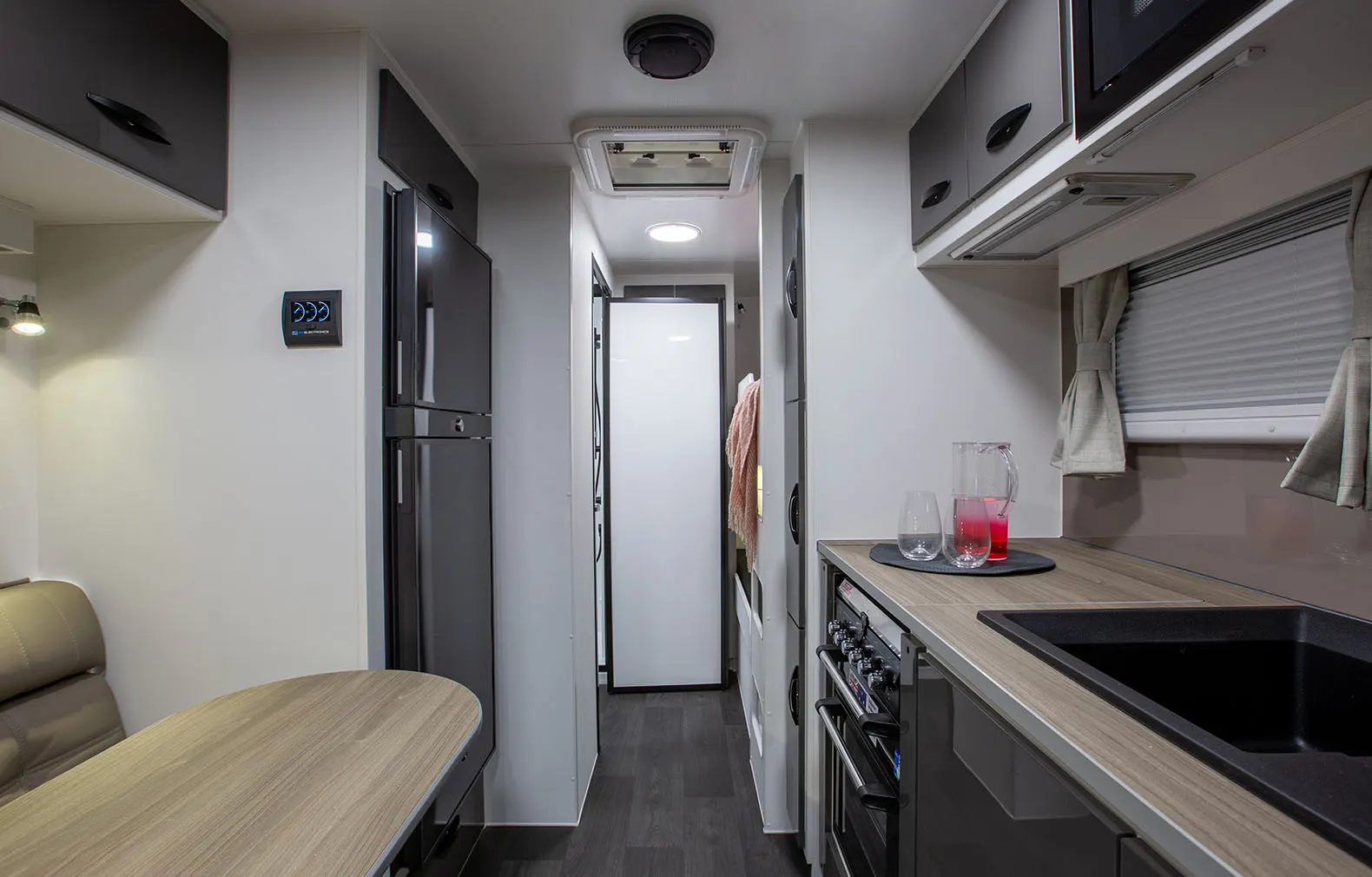

Just because you might be following the road less travelled doesn’t mean you have to give up on the creature comforts of home. This caravan is equipped with a full oven, ceramic swiveling toilet, double door fridge, microwave, reverse cycle air conditioner, washing machine, and an innerspring mattress.

Premium Lighting

When the sun goes down and you’re in the middle of nowhere, having plenty of light is a must. The Territory is fitted with a range of premium Narva lighting – 3 awning lights, a boot light, internal downlights, reading lights (bedroom and dinette), and grab handles.

1700 CSR
1800 RTR
1960 RTR

measuring up

Overall length

7590

External body length

5260

External body width

2350

Travel height

2850

Internal height

1930

Notes: Travel heights based on Roller Rocker Suspension, Heights will vary according to Risers and independent Suspensions

Chassis

Chassis - 150mm (6") Galvanised (Hot Dip)

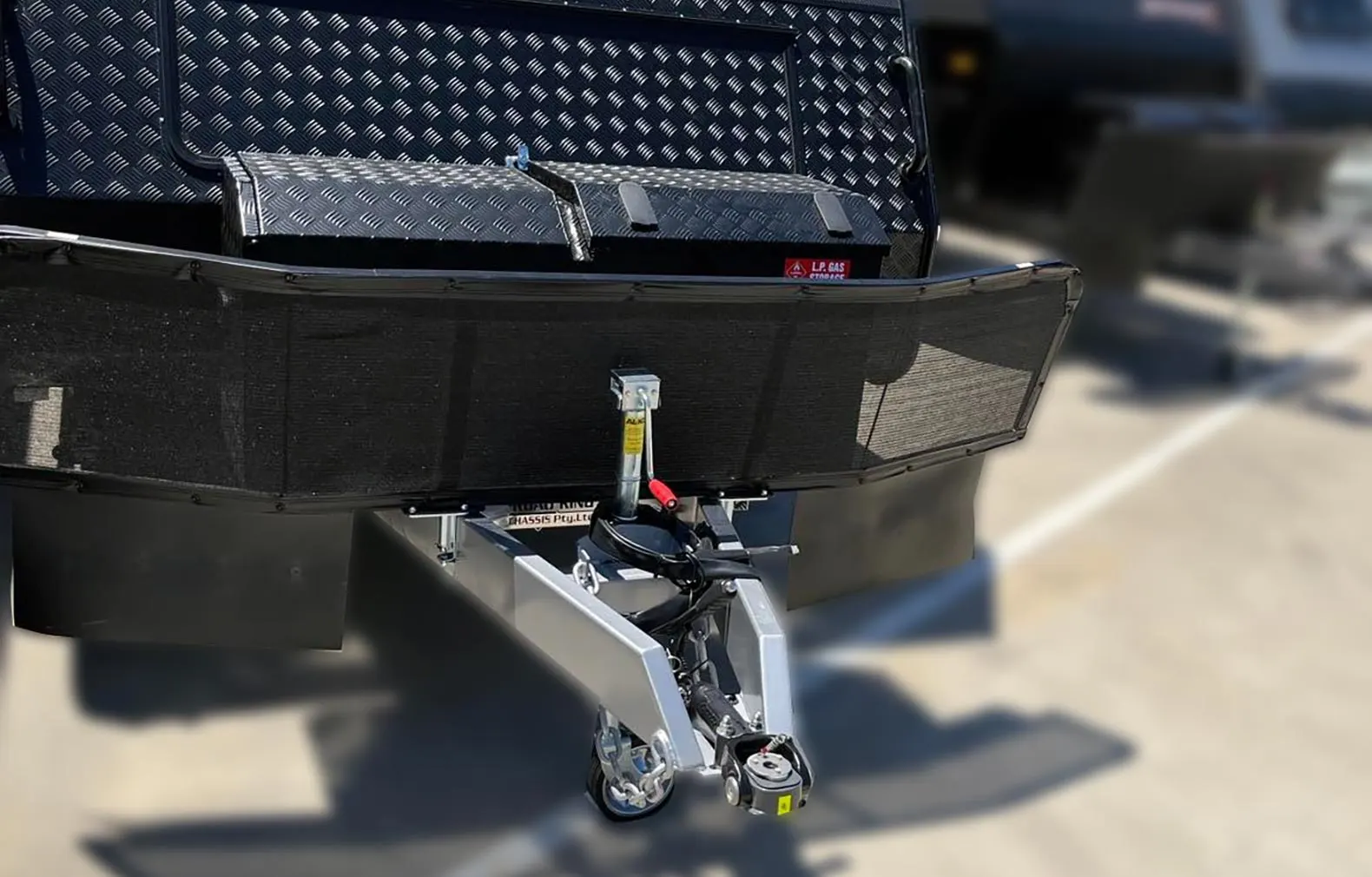

A-Frame (150mm\6") - 150mm (6") Extended by 300mm
Wheels & Tyres - 16" alloy 6 STUD (Off road, All Terrain)

Coupling - Vehicle Components DO-35
Bumper Bar Arms - 4 arm (standard)
Spare Wheel - 1 bolted on bumper bar
Jerry can Holders - 2 bolted on bumper bar

Water Tanks - 3 x 95 Litres
Gas Bottles - 2 x 9kg
Pull out Step - Aluminium Single with Light (Manual Op)
Mesh Tray - YES (under A-frame)

Stoneguard - YES (on A-frame)
Battery Pack - 2 in metal box on chassis
Additional information for chassis - Generator Box on A-frame (Style #ALGEN-SLD) Black C\Plate

External

Side Windows - DOUBLE GLAZED
Front Windows - YES with shade (black frame)
Pebble Guard - Black C\plate

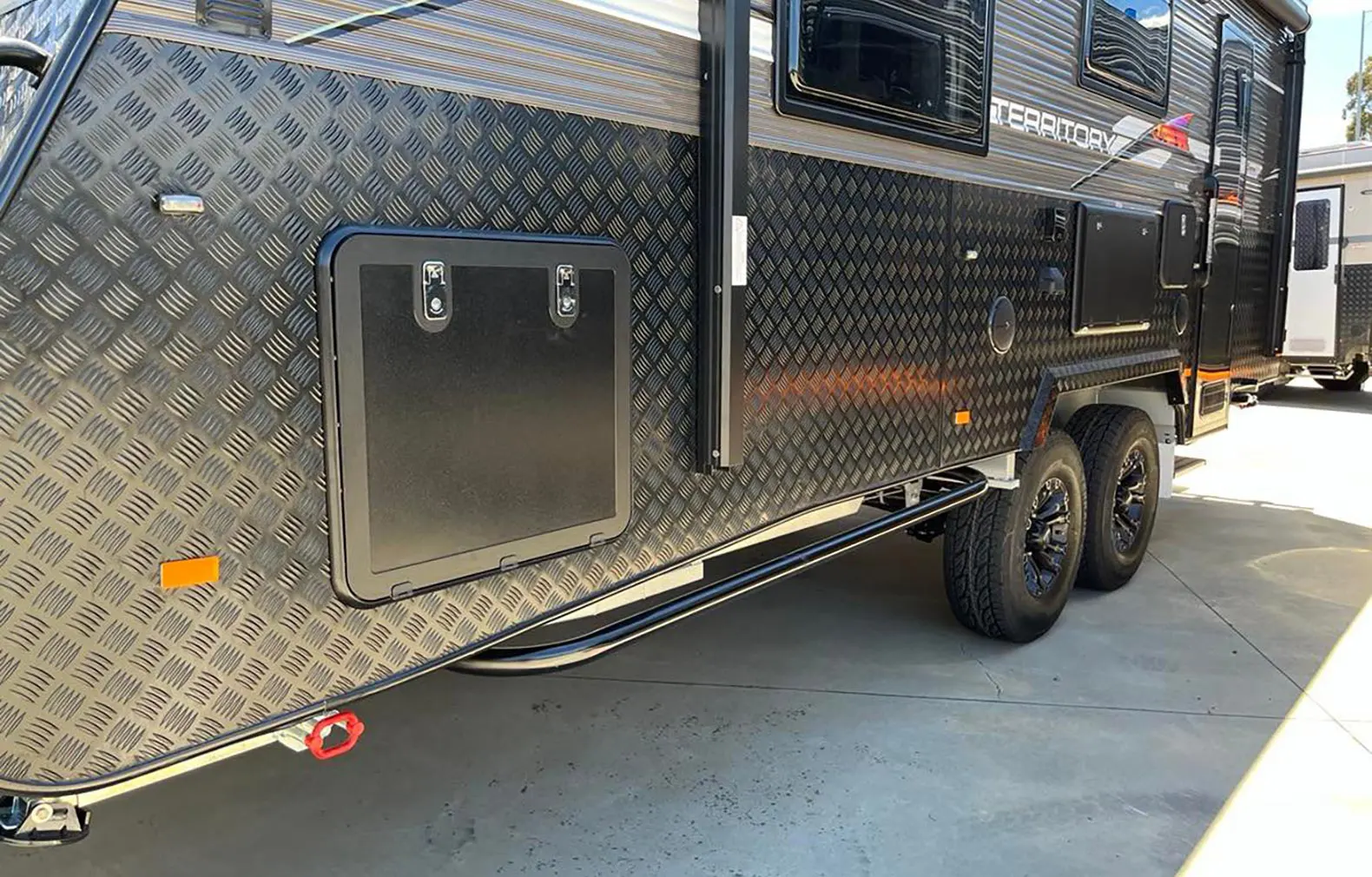

Side C\Plate - Black 500mm high (CP10)
Rear C\Plate - Black 1500mm off ground
C\Plate Panel (FR&BK) - Black (FRONT ONLY)
Insulation - Full
Front Aluminium - Smooth CP10 - CRISTAL SILVER

Front & Rear Aluminium - Smooth CP10 - CRISTAL SILVER (high proWfile)
Roof Aluminium - White - Aluminium Composite Panel
Power Hatches - 2 x 12v (360x360)

Pressure Hatch - YES
Picnic Table - 800 x 450 (black)
Galvanised sheet - YES
Tunnel Boot - 3/4 (1 x Access Door 505x505)

Appliances

Stove - Swift Holiday oven 3gas\1elec burner & grill (laminex lid)
Rangehood - Swift 12V - Flush Mount
Microwave - YES

Fridge - Dometic RM4605 AES (184 Litre)
Audio/Video - Touchscreen BT/USB/Audio-Video & 2 int. speakers
TV - Provision (Block & Fit TV arm only)

External Speakers - YES (2 speakers - fit low)
Air Conditioner - Air Command IBIS

Generator - Provision only (BOX ON A-FRAME)

Electrical

Door Light - LED grab handle (500mm)
External P.Points - 1x240V & 1x12V/USB Combo
Car Plug - 12 pin flat
Anderson Plug - YES

Battery Pack - 2 in metal box on chassis
Roof Antenna - Winegard (Sensar HV) freeview digital
Explorer TV Point - YES
External Lights - LED

Internal Lights - LED Small Down Lights
Solar Power - 2 x 120W panels (SunStar Controller)
Reversing Camera - Wired camera (supply full kit)
External TV - TV Box (With TV arm & Splitter)

Electric Breakaway System - Breaksafe Model BS6000
Water Gauge - For 3 tanks (LCD Multi Display)

Plumbing

H.W.S. - Swift Gas & Electric
Shower - Rectangular
External Shower - YES
Toilet - Thetford Swivel China Bowl

Sink Tap - YES (MIXER)
Sink - Ultimate Stainless Steel
Water Pump - 12V Shurflo

Water Filler - 3 x Lockable
Water Gauge - For 3 tanks (LCD Multi Display)

External Tap - YES on A-Frame
BBQ Gas Point - YES

Colours

Wall Ply - Urban Republic Supermatte
En-Suite Wall Ply - Urban Republic Supermatte

Terylenes (Sheers) - Larren Pearl (all windows)

Decals - Black & Grey

J-Mould Insert - Black

Furniture Doors

DOOR HANDLES & CATCHES

LOWER C'BOARDS - Dorset Pull Handle V1295 (Satin)

DOOR HINGES - Piano Hinges

NOTES

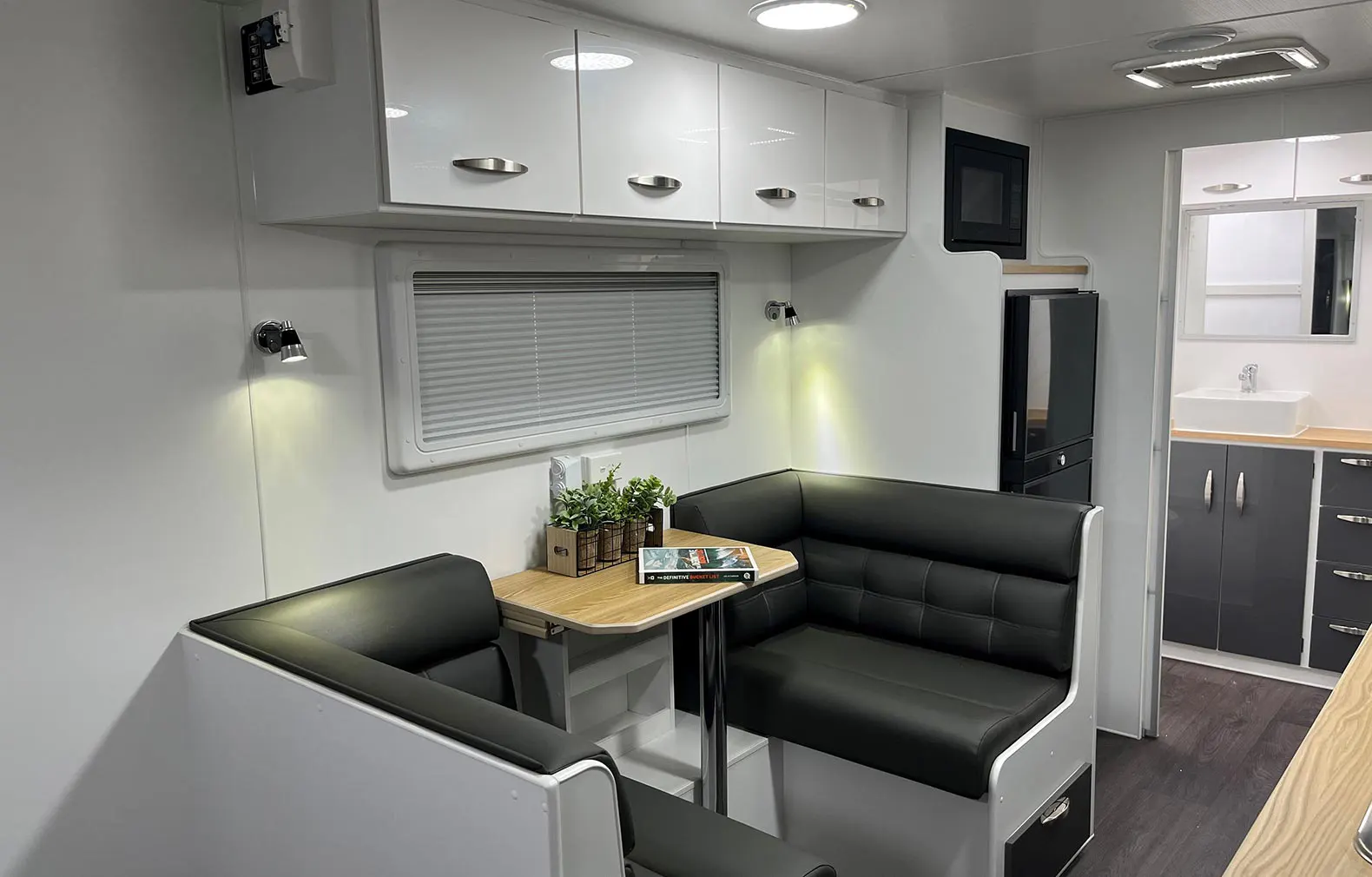

1x240V, 1x12V/USB Combo AT DINETTE/CAFÉ
Queen sized Innerspring mattress (size)

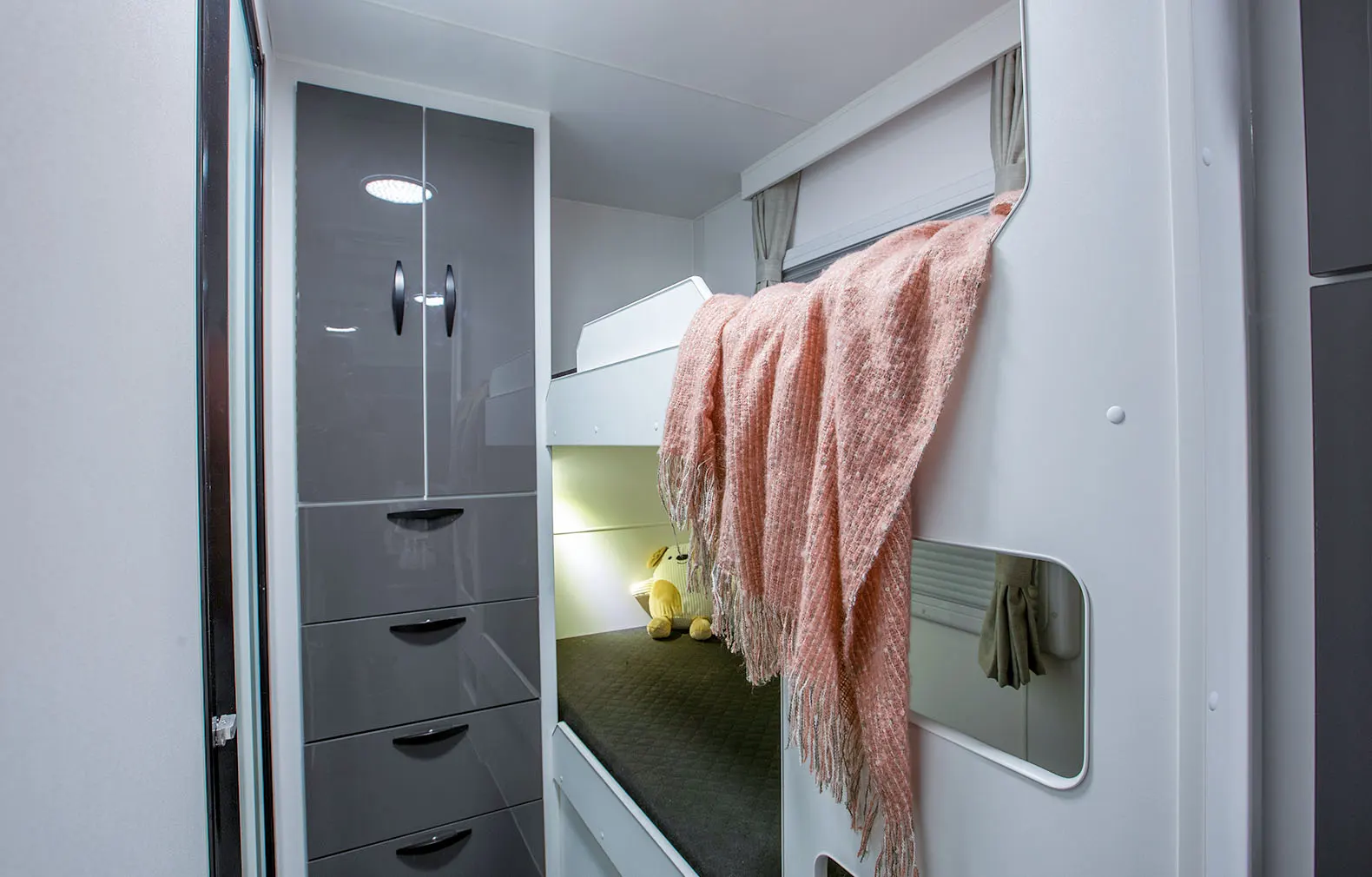

Bedroom Robes with bedside nooks

Bathroom Pack (Towel Rail & Toilet Roll Holder)
Nuova Mapa Table Leg (where applicable)
All external wall hatches and wall fittings shall be BLACK

SHEATHING TO ALL PVC PIPES

Payload increase to 500kg Nominal (Tandem) - 0

Can you tow the Supreme Territory Caravan?

Download the National Towing Guide to find your vehicle.
If you have any questions please contact your local Dealer.

standard inclusions

Checker Guard

Protects the front of your caravan (as well as your gas bottles) from flying stones and other debris

Full Oven, Grill & 4 Burners

Our vans are fitted with an Australian made full size oven as standard. The burners have a cover for extra bench space

Digital Battery Display

See your battery usage and how many volts each contains with this high powered solar controlled display

Reverse Cycle Air Conditioning

Slimline so you won’t hit your head on it and whisper quiet, the A/C unit also offers cabin climate control

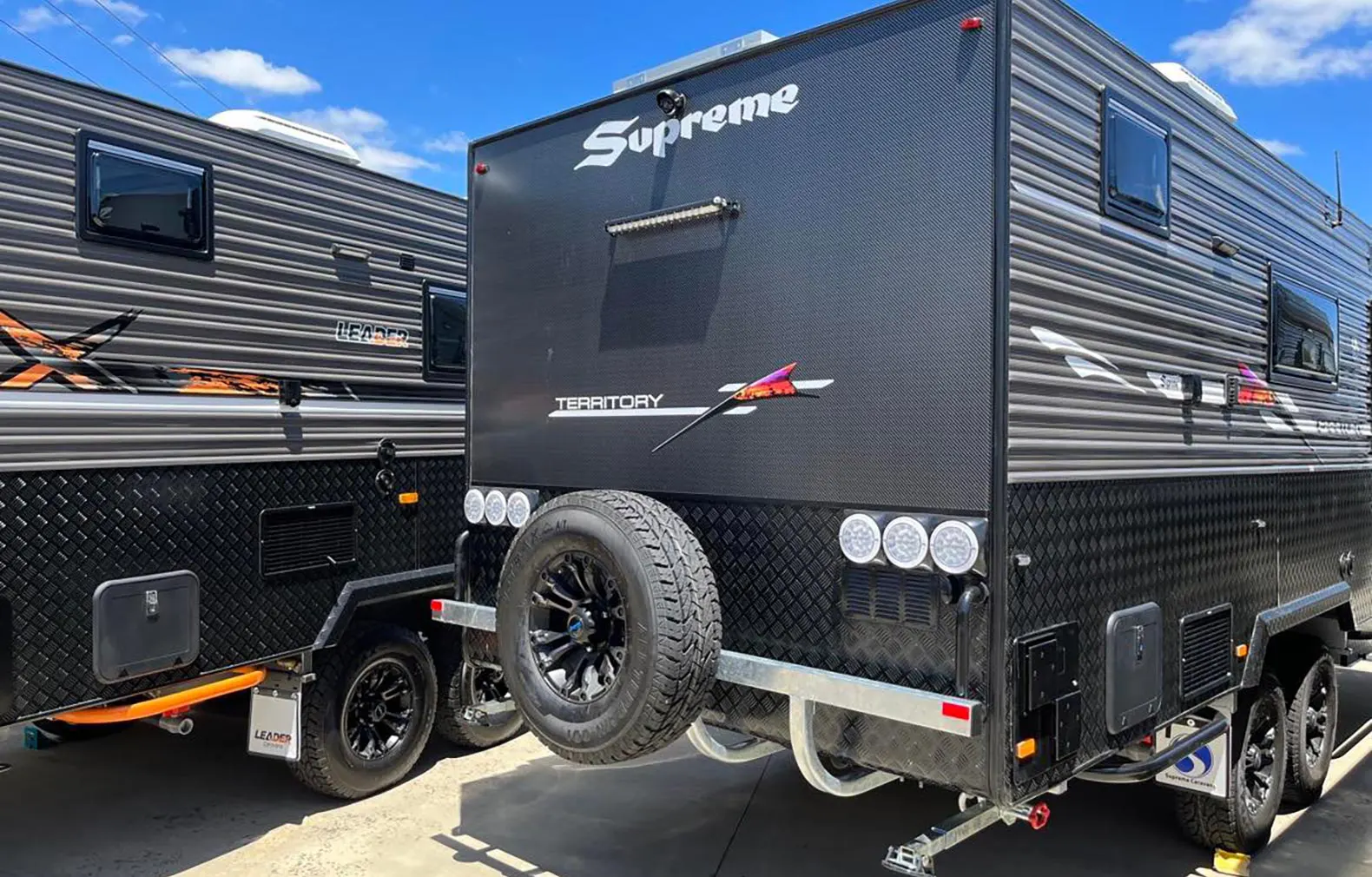

Spare Tyre

Mounted on the rear of the caravan, the spare tyre with matching 16 inch alloy is easy to access and is lockable

Extra Large Front Boot

The front boot features a galvanised lining so it can hold dry, wet or dirty items

Solar Panel

This caravan is fitted with a 120w solar panel, fitted by our factory, to ensure your batteries are always charged

Household Tap Ware

The same quality fittings you would find in your home, they offer better operation than subpar counterparts

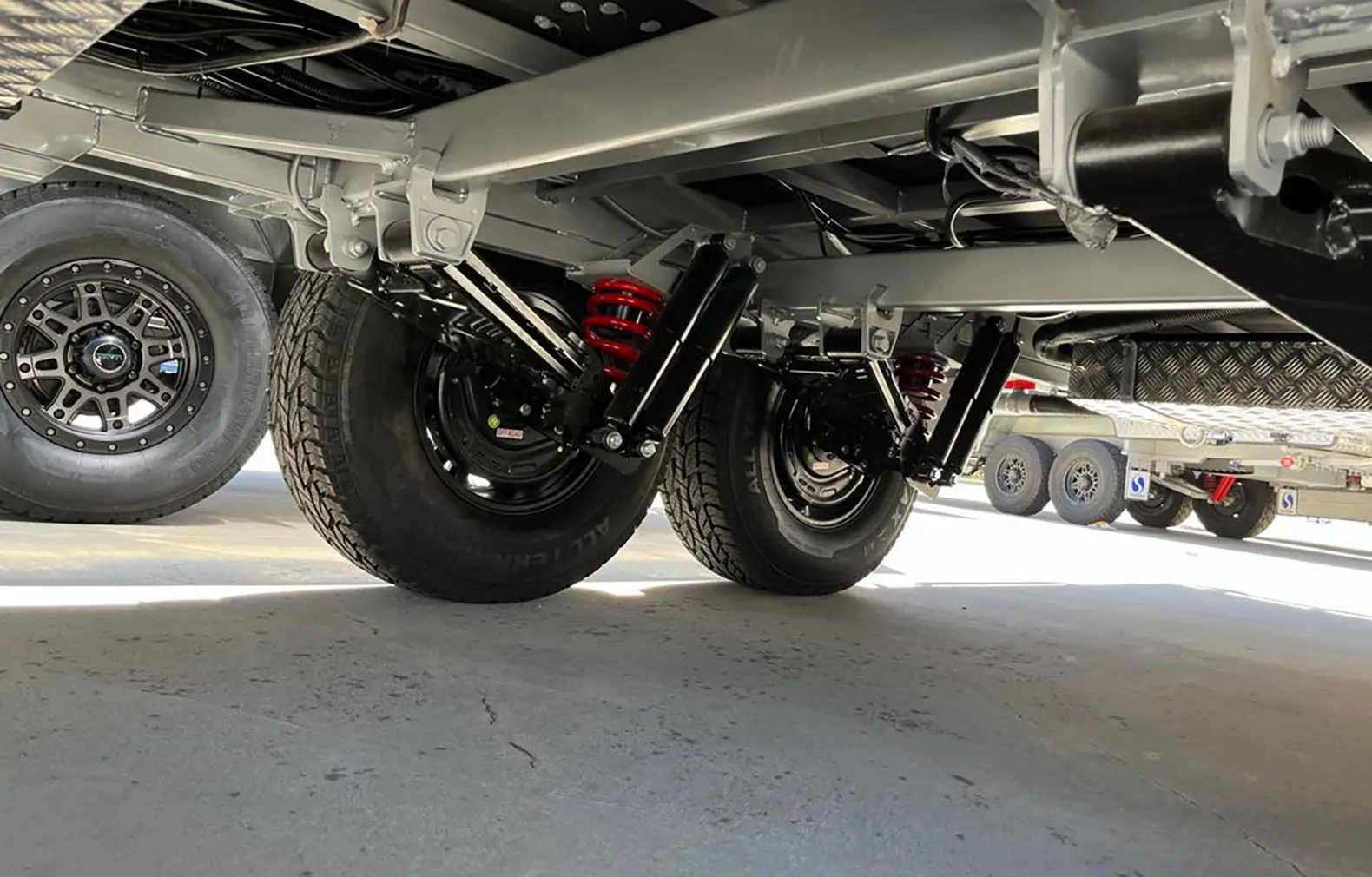

Full Off Road Alko Enduro independent coil spring suspension with 16 inch wheels

Suitable for the toughest terrain you will traverse in Australia. With 16 inch wheels, 12 inch brakes and all terrain tyres it will take the corrugation with easy and preform under brakes.

Hot Dipped Galvanised Chassis with under body galvanised sheet protection

The underbody of the Territory is completely protected with all water tanks, PVC pipes and ply floor covered by galvanised sheeting under the full box section chassis.
