Base Camp

Do you have passion for caravanning and outdoor adventure? Then the Supreme Base Camp caravan for sale is sure to get your motor racing! Get set to experience everyday life with an edge – touring far and wide into the countryside whilst being able to access all your toys.

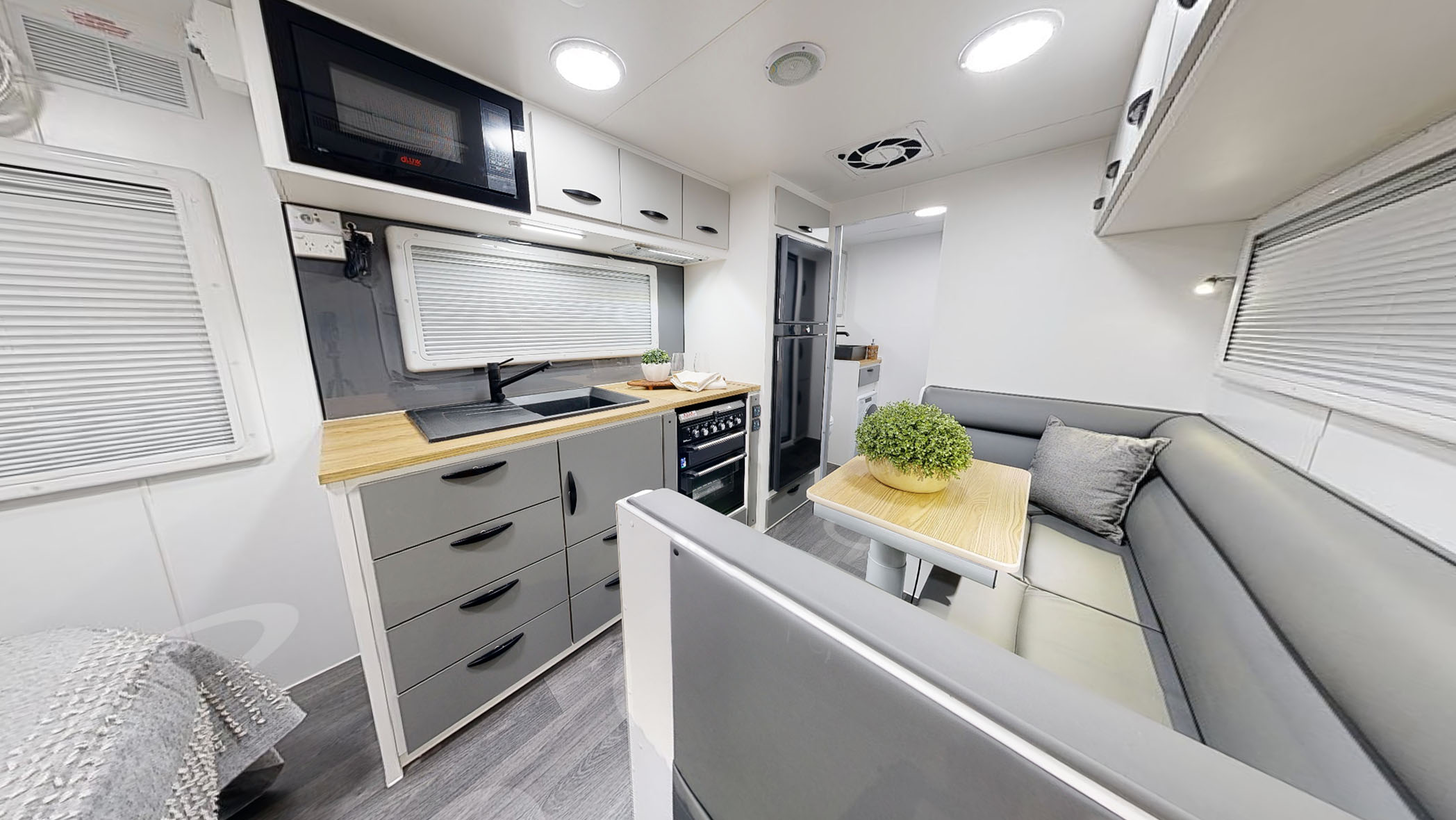

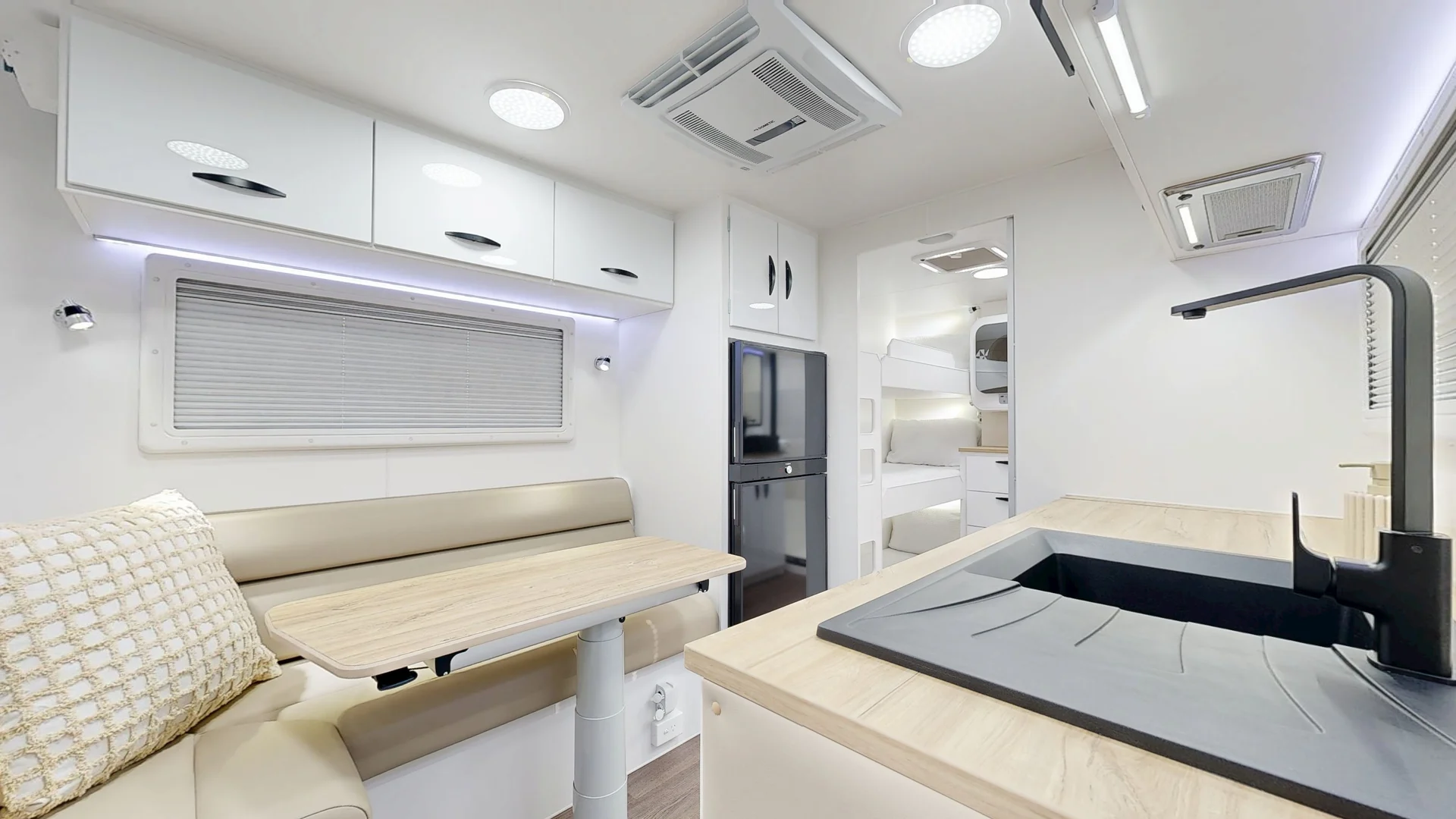

Spacious Interior

You’ll never want to leave the spacious interior living area, loaded with all the mod cons you could possibly need whilst on holiday. From the huge L-shaped dinette and fully equipped kitchen (complete with oven and microwave) to the all essential bathroom facilities and queen bed, all your bases are covered.

base camp caravans interior
base camp caravans

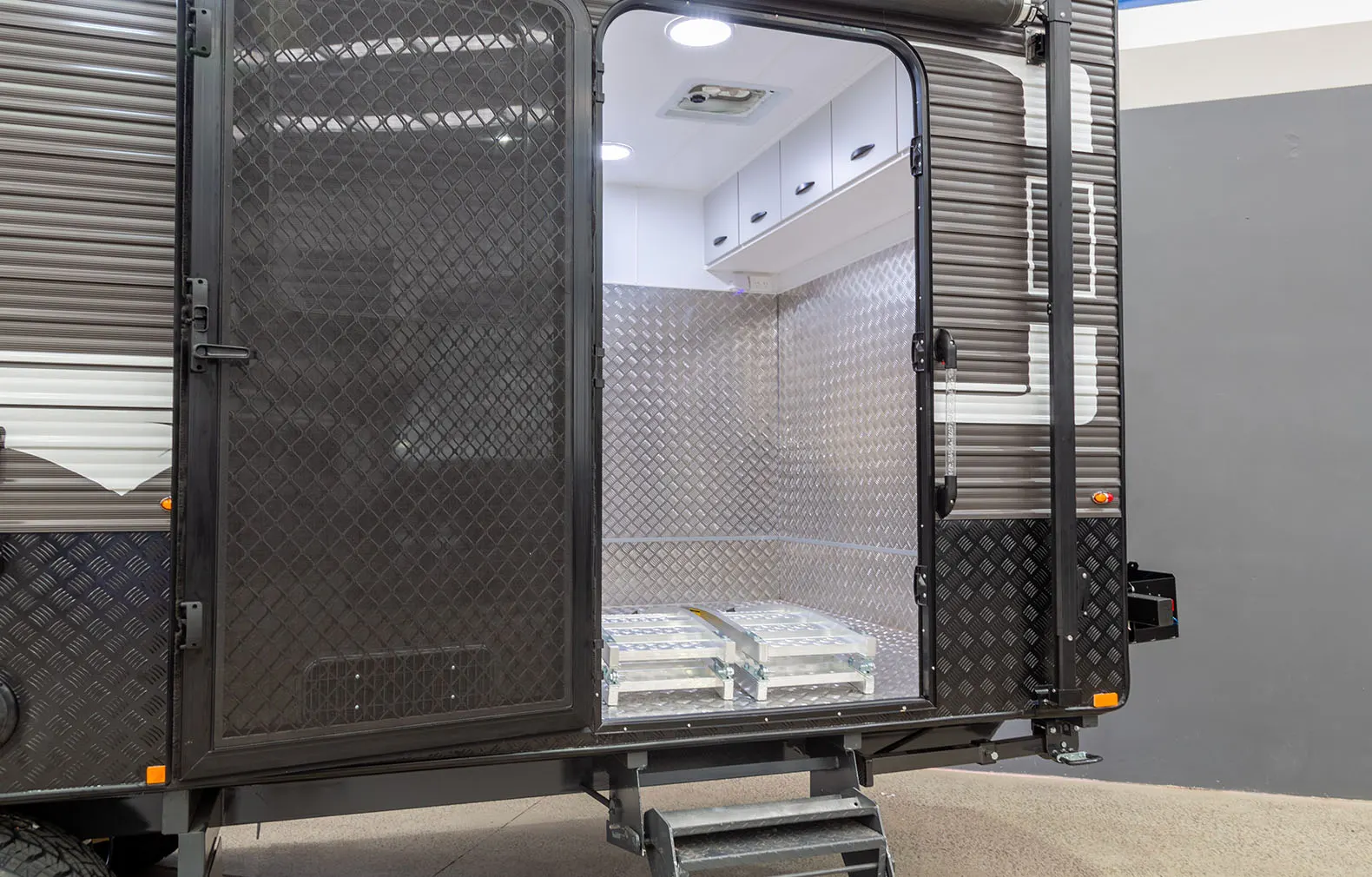

Rear Garage With Ramp

At the rear of our Base Camp caravan, you’ll find a separate garage/storage space that is wholly unique to this model. Although this space is generally used to carry bicycles, fishing gear, tools and even motorbikes, it can be completely customised to suit your needs. Other uses we’ve seen include a kid’s playroom and fully fitted home office.

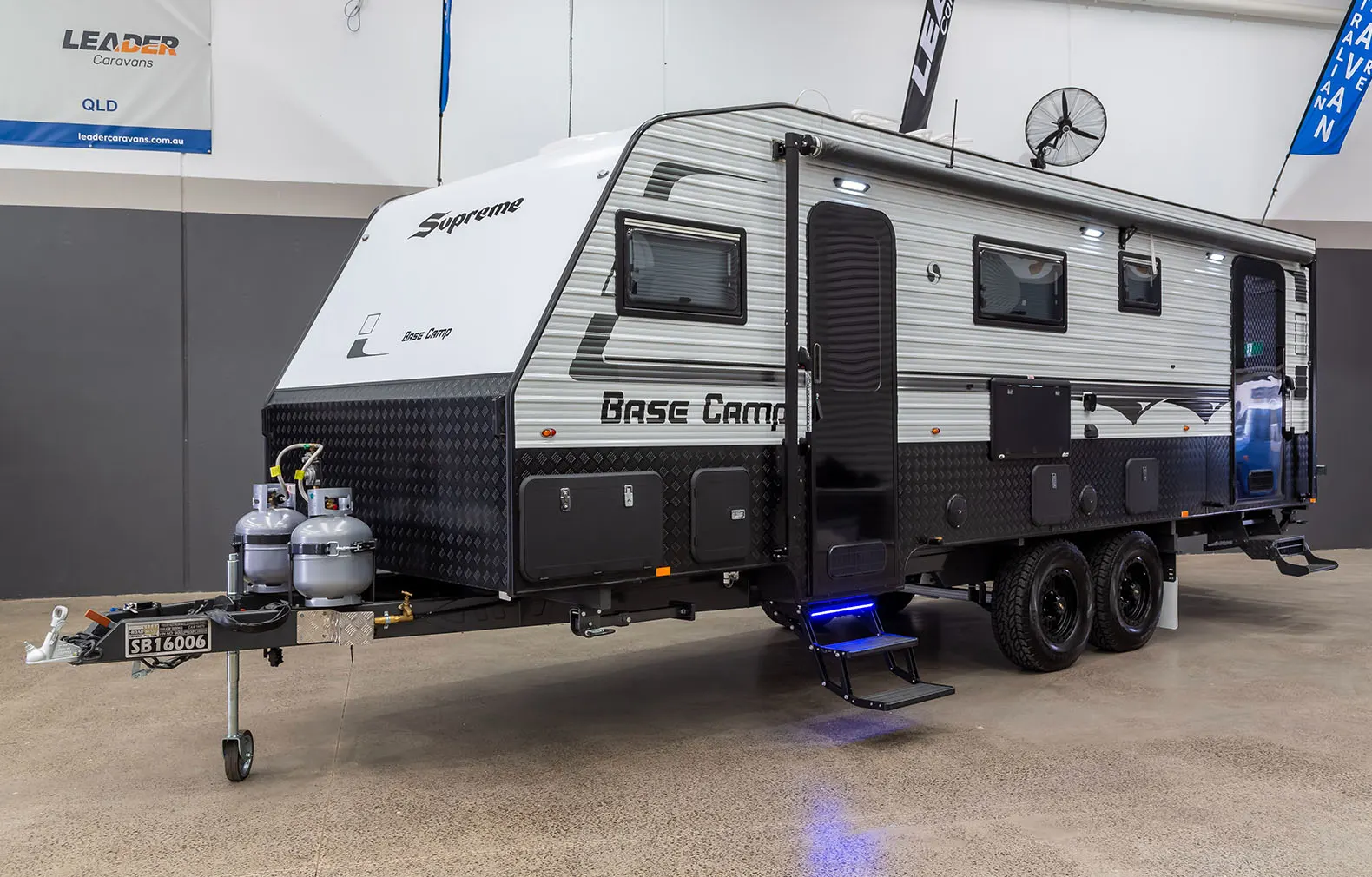

Heavy Duty Chassis

To ensure that Base Camp caravans in Melbourne and beyond are able to take you wherever your heart desires, it has been equipped with heavy duty box section chassis rails. All chassis are built in-house, are welded (not bolted) and are specially designed for each of our layouts. This ensures that your van is extra strong and can withstand the harsh Australian conditions.

supreme base camp caravans
base camp caravans insulation

Full Insulation

Base Camp is also fully insulated to ensure maximum comfort in all climates. The small size of a caravan can mean that the space becomes very hot or very cold quickly – insulation will ensure that the space is easier to keep cool or warm, helped along by our premium reverse cycle air conditioning units.

gallery

Fall in love with the luxury features and ample space that the Base Camp caravan offers. And remember that Supreme has a wide range of options available to customise your van, from the colour choices of the cabinets to the splashback.

Bedroom
base camp caravans bedroom
Laundry
base camp caravans laundry
Bathroom
base camp caravans bathroom
Lounge
base camp caravans lounge
  • 2460 BC2
  • 2460 BC3
measuring up
Overall length
9840
External body length
7860
External body width
2350
Travel height
2960
Internal height
1930

Notes: Travel heights based on Roller Rocker Suspension, Heights will vary according to Risers and independent Suspensions

Chassis
  • Chassis - 150mm (6") Permagal
  • A-Frame (150mm\6") - NO Front Ext. (Extend to Spring Hangers)
  • Riser - 150mm (at axle)
  • Suspension \ Rating - Roller Rocker 3500KG (tandem axle)
  • Brakes - 12 inch
  • Wheels - 15" alloy 6 STUD
  • Coupling - Standard
  • Bumper Bar Arms - 4 arm (standard)
  • Spare Wheel - 1 bolted on bumper bar
  • Jerry can Holders - 2 bolted on bumper bar
  • Water Tanks - 2 x 80 Litres
  • Gas Bottles - 2 x 9kg
  • Pull out Step - Steel - Double Step (x2)
  • Mesh Tray - YES (under A-frame)
  • Stoneguard - NO
  • Toolbox - NO
  • Additional Chassis information - NO ESC
External
  • Side Windows - DOUBLE GLAZED
  • Front Windows - YES with shade (black frame)
  • Rear Windows - NO
  • Boot Door (SP2) - Black C\PLATE 450Hx1524W 2RC (BF)
  • Pebble Guard - Black C\plate
  • Side C\Plate - Black 485mm high (NF10)
  • Rear C\Plate - NO
  • C\Plate Panel (FR&BK) - Black
  • Insulation - Full
  • Roof Aluminium - White - Aluminium Composite Panel
  • Pressure Hatch - NO
  • Picnic Table - 800 x 450 (black)
  • Galvanised sheet - NO
  • Tunnel Boot - 3/4 (1 x Access Door)
Appliances
  • Stove - Swift Holiday oven 3gas\1elec burner & grill (laminex lid)
  • Rangehood - Swift 12V - Flush Mount
  • Microwave - YES
  • Fridge - Dometic RM4606 UES (185 Litre)
  • Audio/Video - Bluetooth/USB Audio/Video & 2 int. speakers
  • TV - Provision (Block & Fit TV arm only)
  • External Speakers - YES (2 speakers - fit low)
  • Air Conditioner - Air Command IBIS
  • BBQ - NO
  • Heater - NO
  • Generator - NO
Electrical
  • Door Light - LED grab handle (500mm)
  • External P.Points - 1x240V & 1x12V/USB Combo
  • Car Plug - 12 pin flat
  • Anderson Plug - YES
  • Roof Antenna - Winegard (Sensar HV) freeview digital
  • Explorer TV Point - YES
  • External Lights - LED
  • Internal Lights - LED Small Down Lights
  • Solar Power - 2 x 120W panels (standard controller)
  • Reversing Camera - NO
  • External TV - TV Box (With TV arm & Splitter)
  • Inverter - NO
  • Electric Breakaway System - Breaksafe Model BS6000
  • Water Gauge - For 2 tanks (LED Level Indicator)
  • ESC - NO ESC
Plumbing
  • H.W.S. - Swift Gas & Electric
  • External Shower - YES
  • Sink Tap - YES (MIXER)
  • Sink - Ultimate Stainless Steel
  • Water Pump - 12V Shurflo
  • Water Filler - 2 x Lockable
  • Water Gauge - For 2 tanks (LED Level Indicator)
  • Water Filter - NO
  • External Tap - YES on A-Frame
  • BBQ Gas Point - NO
  • Grey Water Tank - NO
Internal Colours
  • Wall Ply - Urban Republic Supermatte
  • En-Suite Wall Ply - Urban Republic Supermatte
  • Terylenes (Sheers) - Larren Pearl (all windows)
  • Venetians - NO
  • External Decals - Black & Grey
  • J-Mould Insert - Black
Furniture Doors
  • LOWER C'BOARDS - Dorset Pull Handle V1295 (Satin)
  • DOOR HINGES - Standard Hinges
NOTES
  • 1x240V, 1x12V/USB Combo AT DINETTE/CAFÉ
  • Queen sized Innerspring mattress (size)
  • Bedroom Robes with bedside nooks
  • Bathroom Pack (Towel Rail & Toilet Roll Holder)
  • Nuova Mapa Table Leg (where applicable)
  • All external wall hatches and wall fittings shall be BLACK
  • Payload increase to 500kg Nominal (Tandem)
  • Reference Chassis No. - 0
