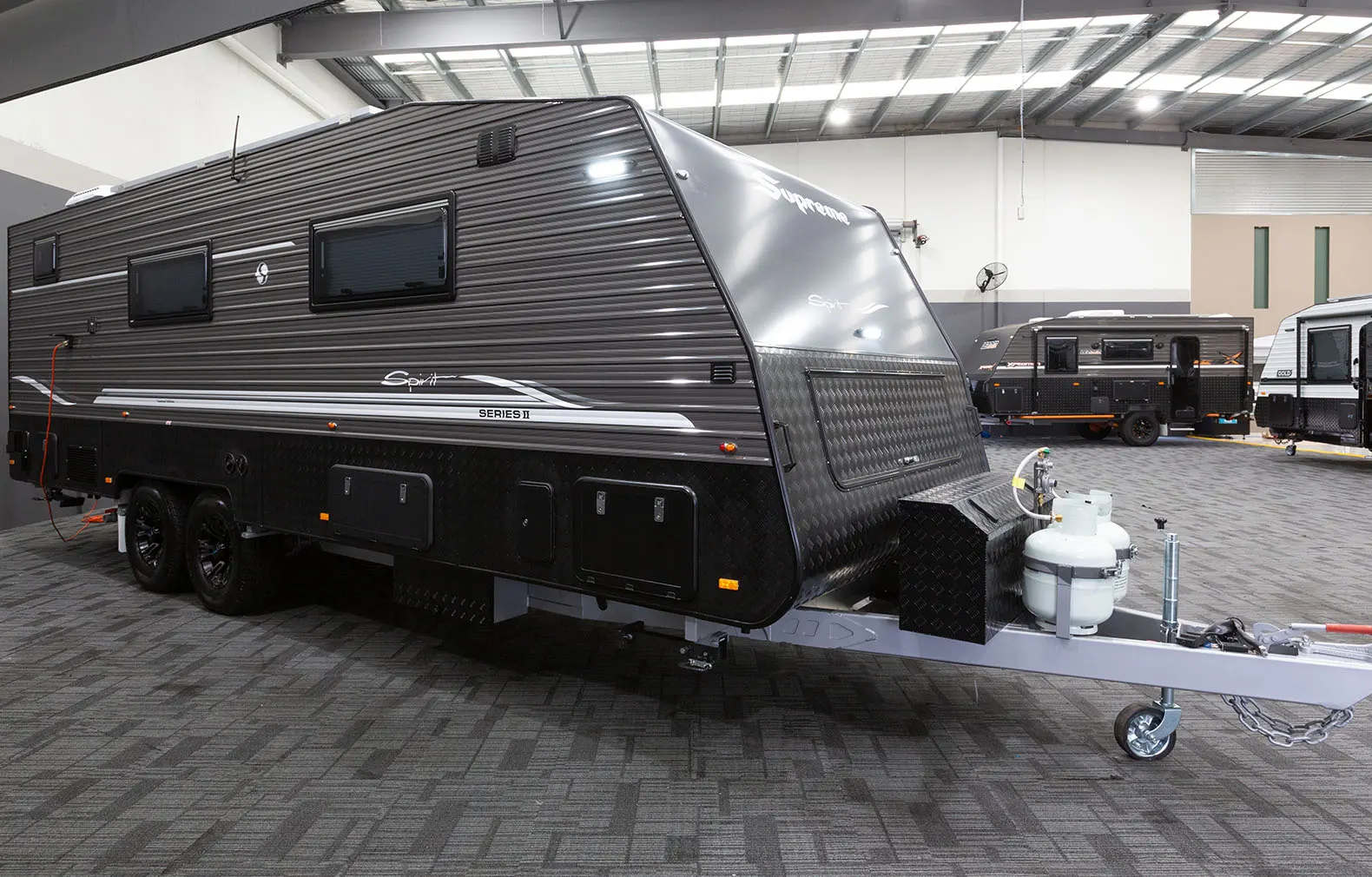

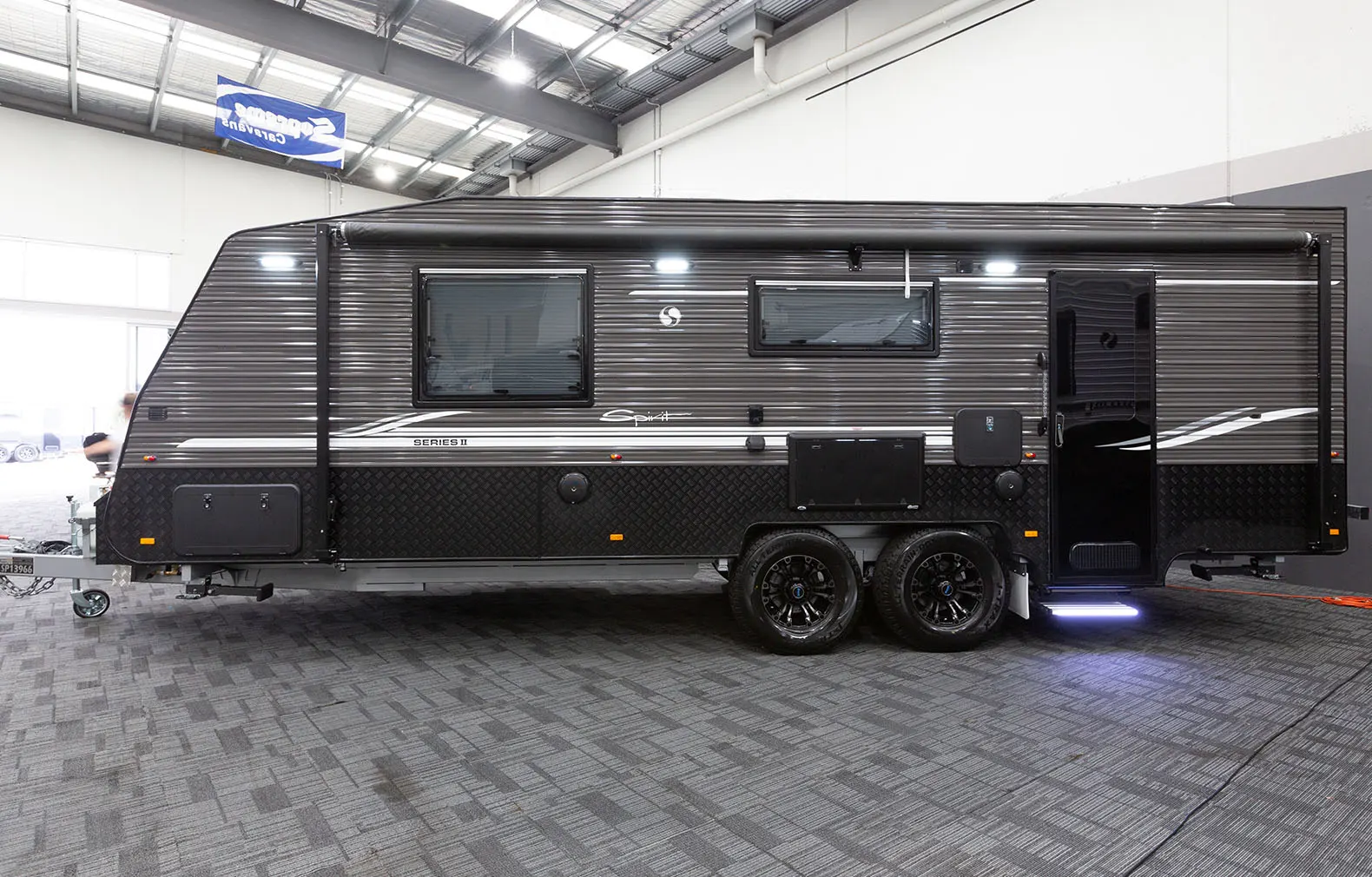

Spirit

The stylishly appointed Supreme Spirit caravan for sale evolved from extensive requests from the caravanning community for vans designed to tour Australia in absolute comfort – hence an upgrade in features. The Spirit also offers a slide out option for those after even more space!

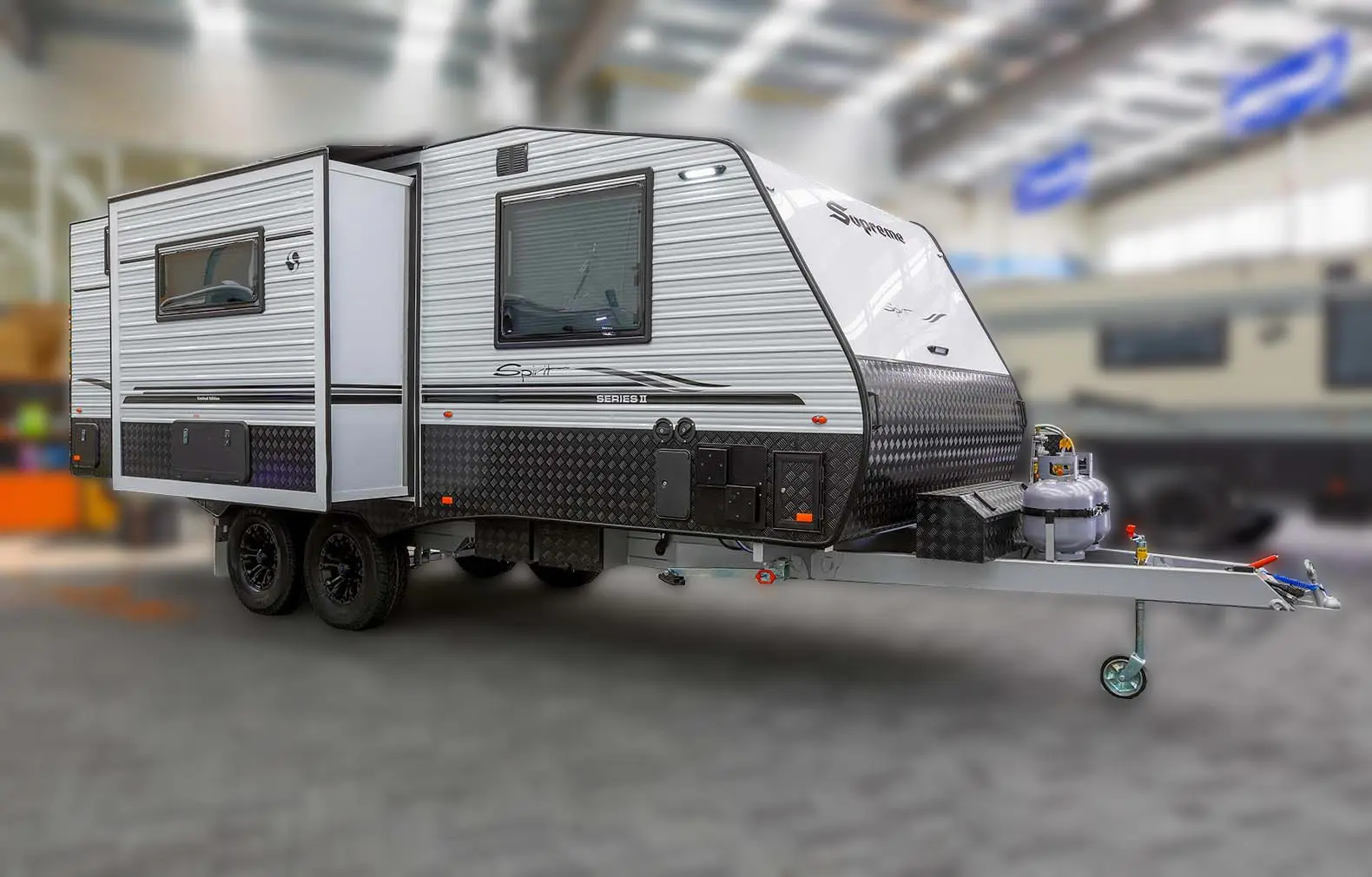

Signature Slide Out

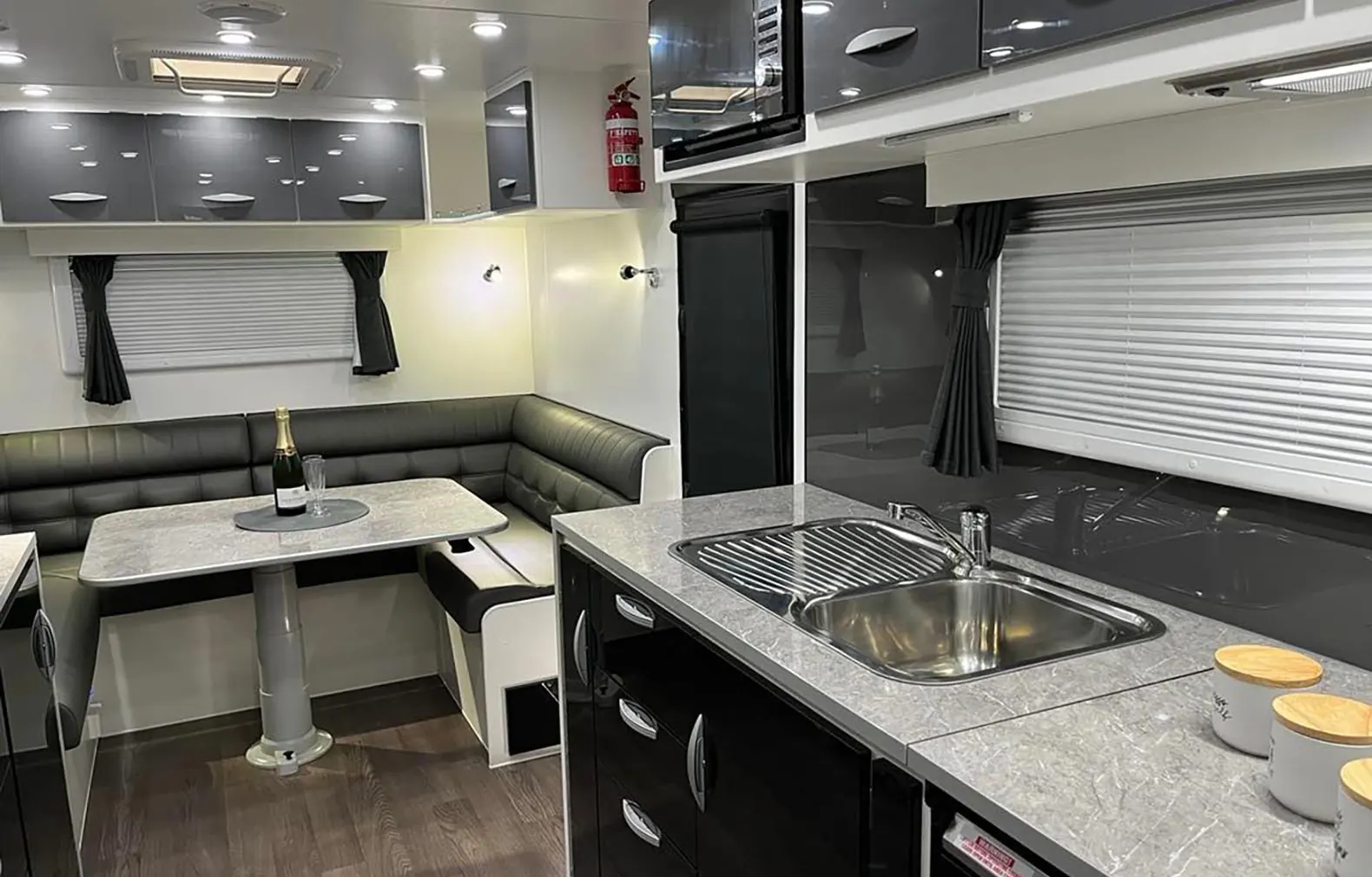

If you’d like a little more space in your caravan, choosing a floor plan with our signature slider will provide just that. Once you’ve picked the ideal spot to set up camp, a pocket slides out from one side of the van to house the long side of the C- shaped dinette. Have ample seating without sacrificing on the galley. Simply slide the pocket back in when it’s time to hit the road again.

Signature Slide Out
spirit caravans

Meranti Timber Frame

Our Spirit caravans are built with a Meranti timber frame, which is 28mm thick and bolted to the side of the chassis. It allows for more flex in the body, similarly to when a tree bends in the wind. All of our frames are bolted together, providing one hundred times the strength of rivets.

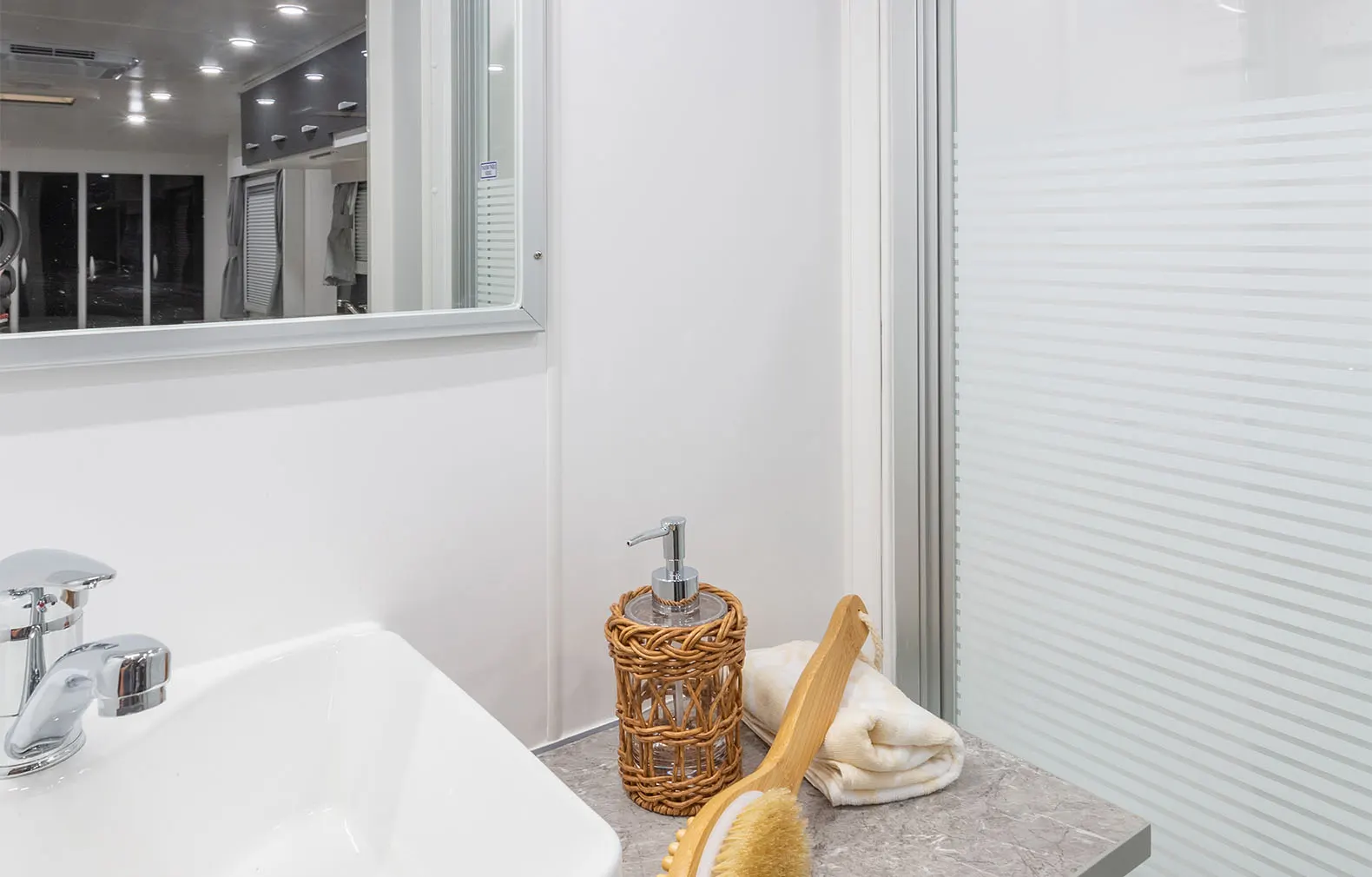

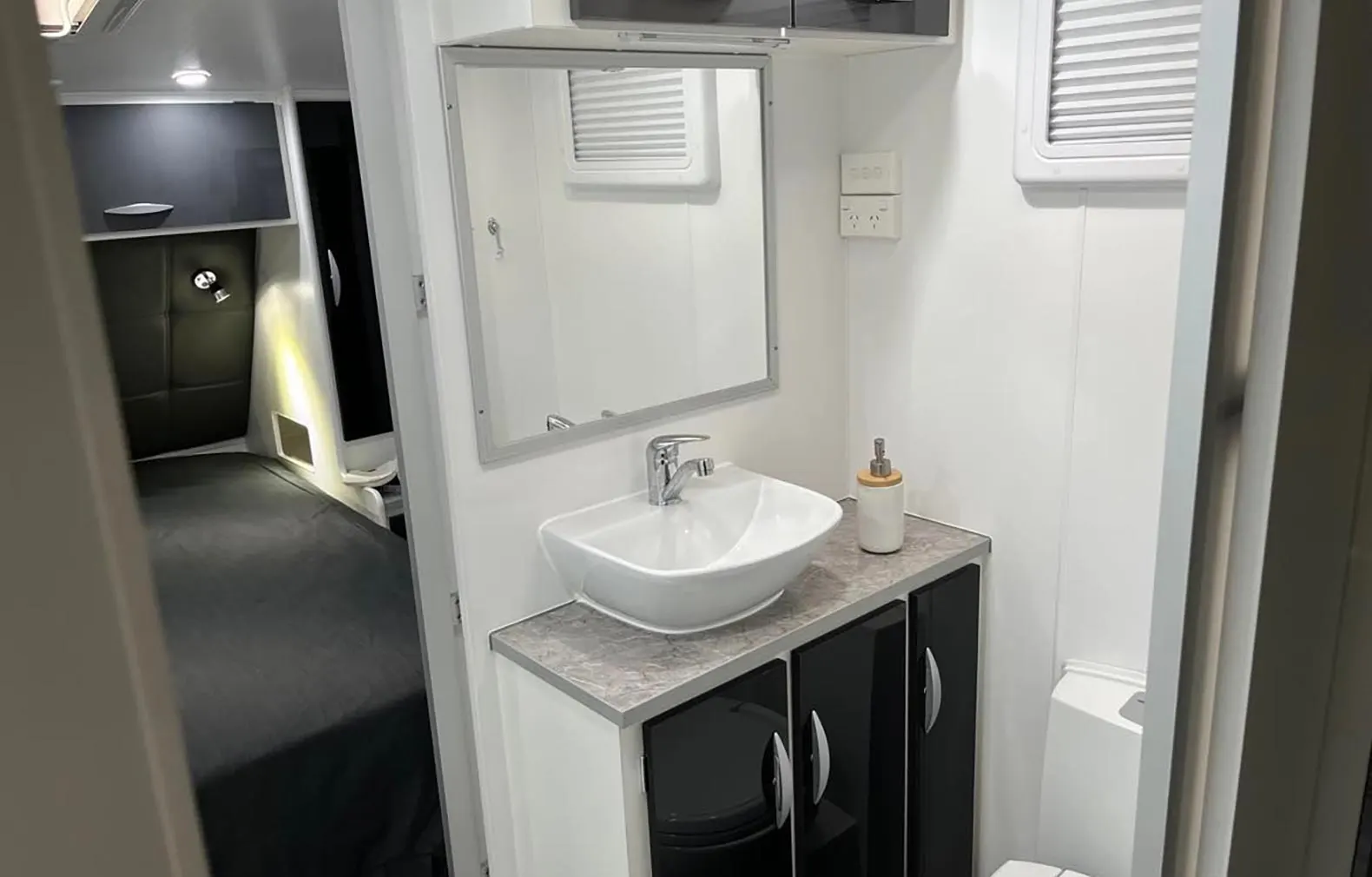

Full Ensuite Bathroom

For the utmost in luxury during your travels, the Spirit caravan has been fitted with a full ensuite – you’ll never have to brave the dark to use facilities again. The ensuite includes a porcelain toilet (easy to clean), large moulded shower (won’t leak and eliminates mould issues) and a porcelain basin (easy to clean and retains its appearance well).

spirit caravans bathroom
spirit caravans appliances

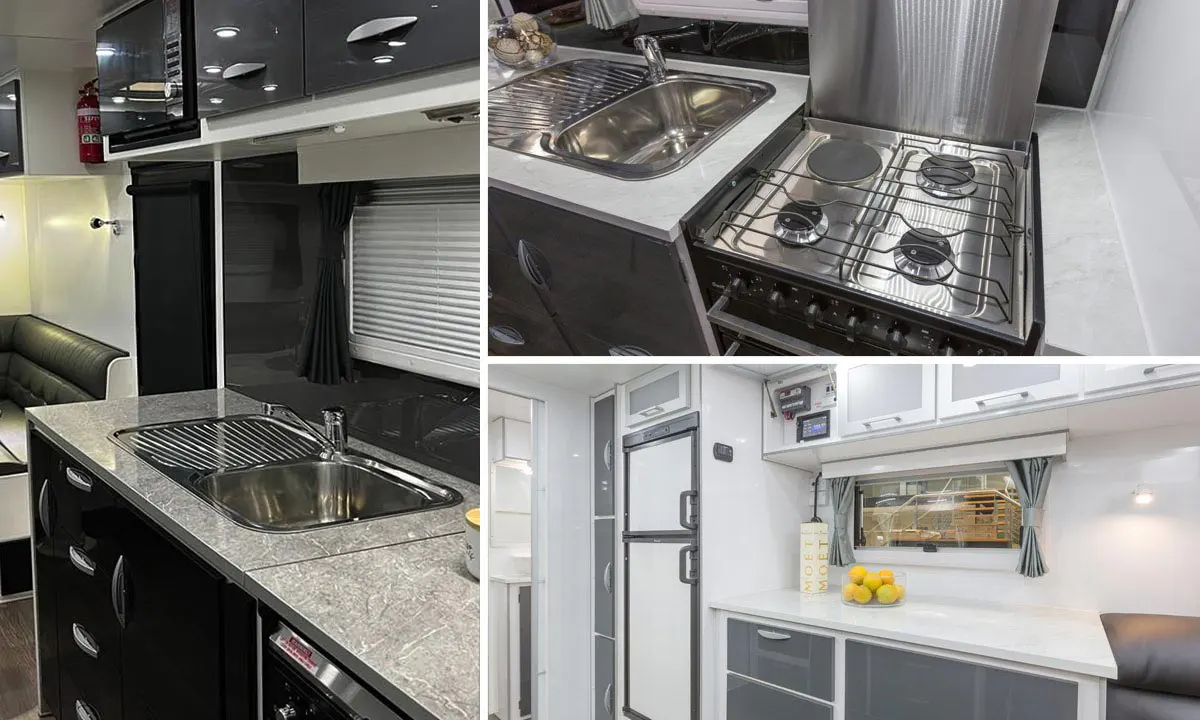

High Quality Appliances

Spirit is fitted with a number of high quality appliances, many of them full size, to make your journey as enjoyable as possible. These include reverse cycle air conditioning, pull out BBQ, oven with grill and 4 burners, 23 litre microwave, double door fridge, sound system, and washing machine.

gallery

Whether you’re interested in one of our slider floor plans or a standard layout, you must see our amazing Spirit caravan in Melbourne and beyond for yourself. The look and feel of your van can be customised to suit your personal taste and requirements.

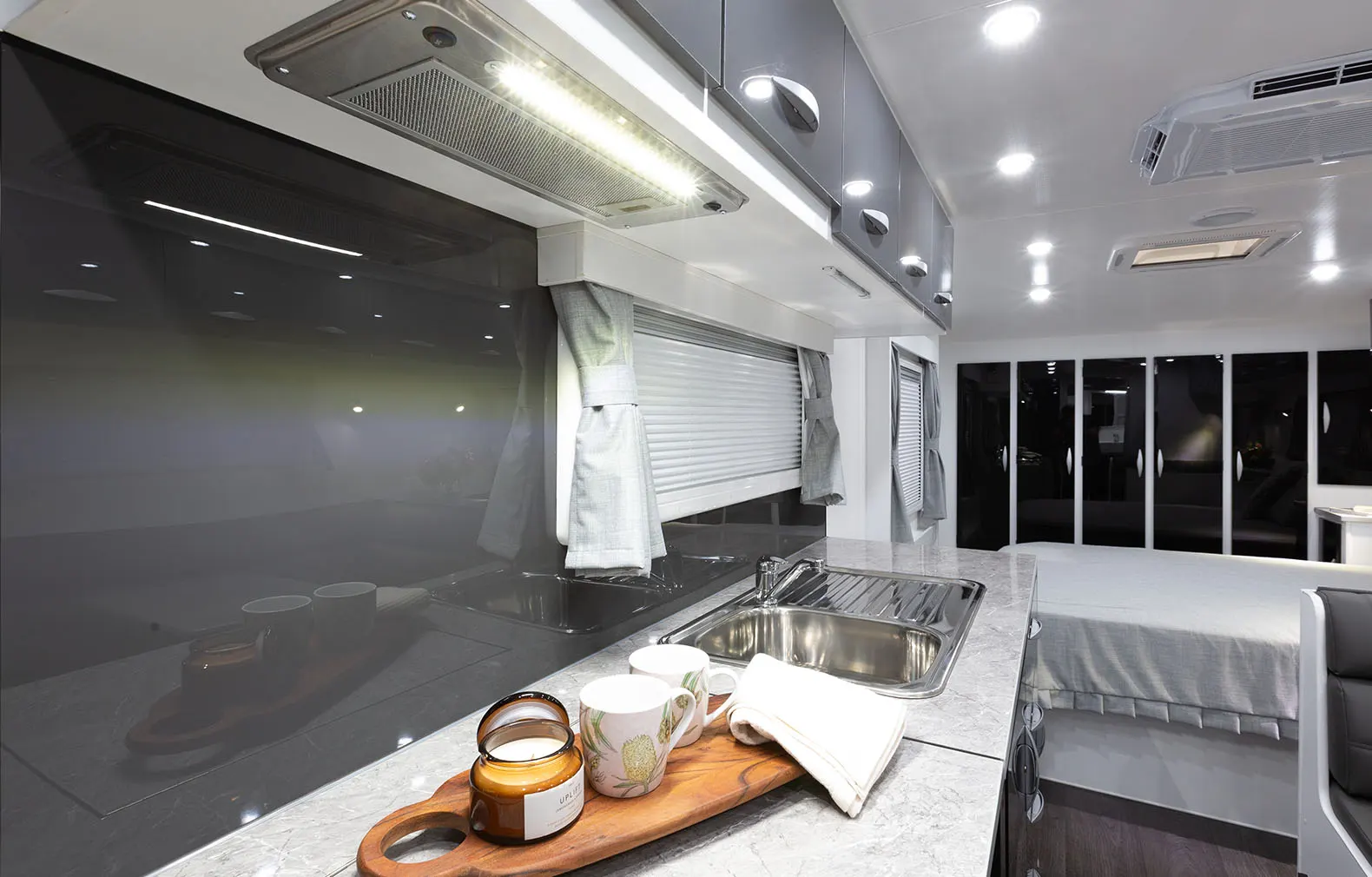

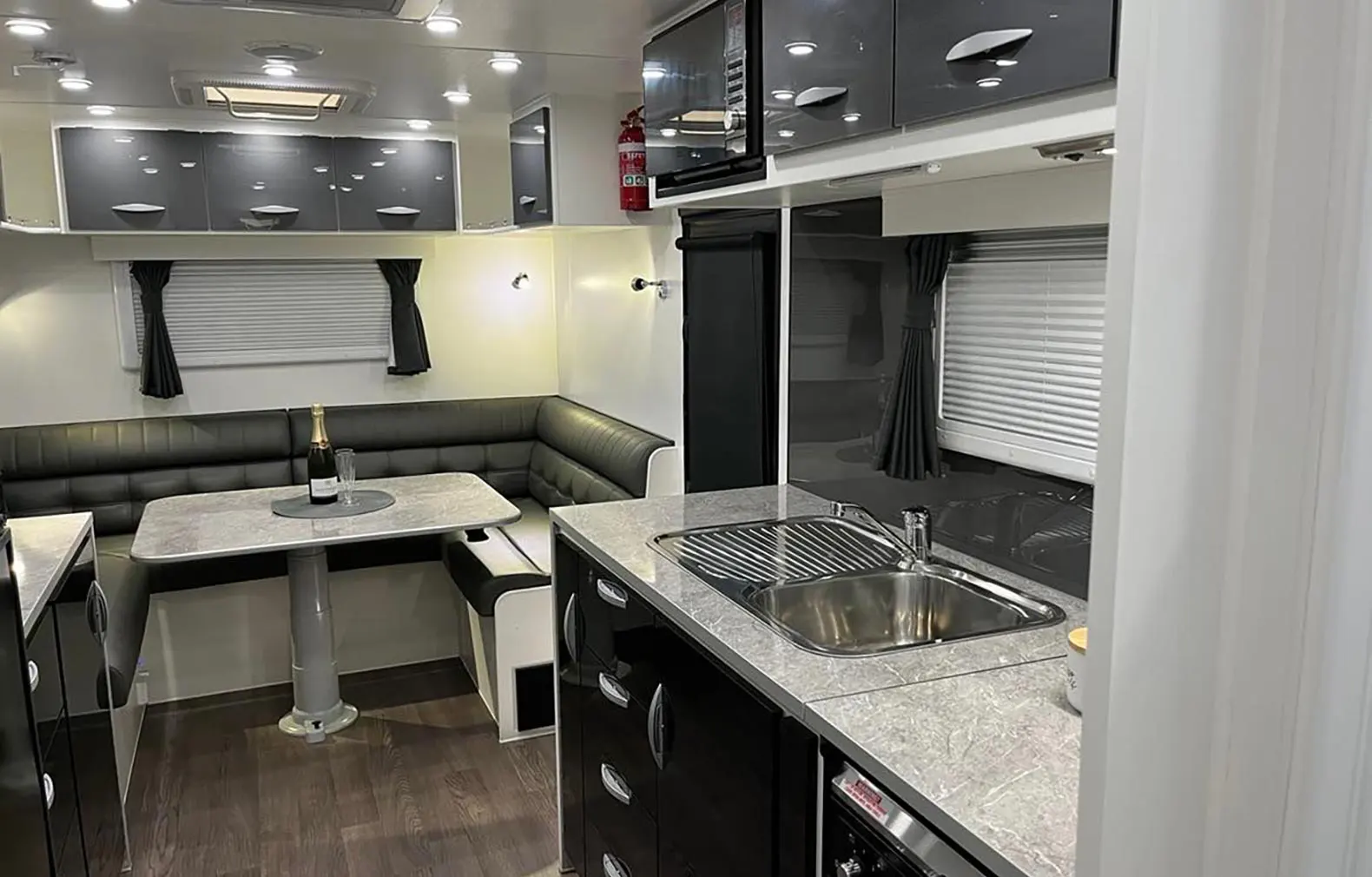

Kitchen

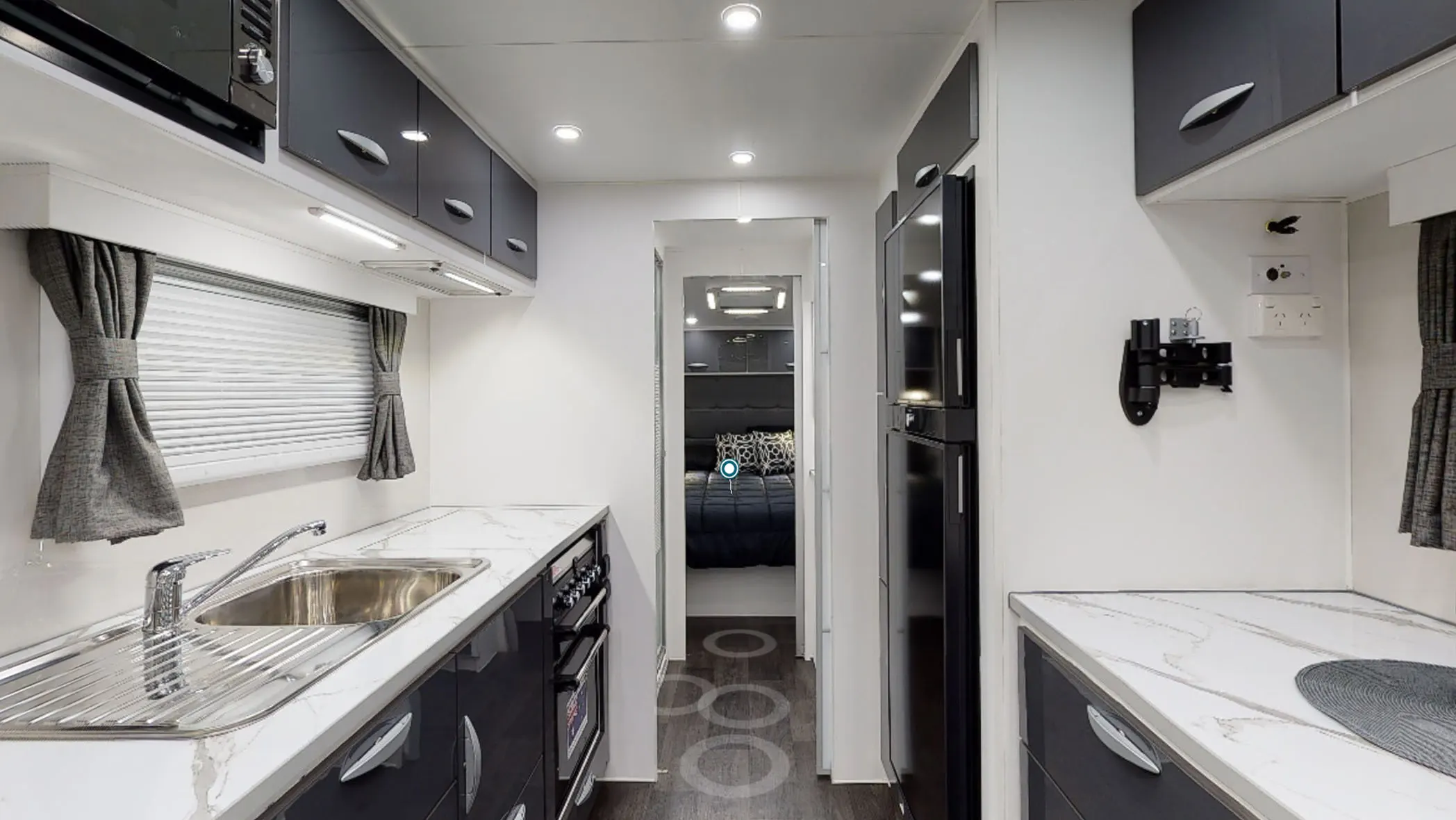

spirit caravans kitchen
Lounge Converts

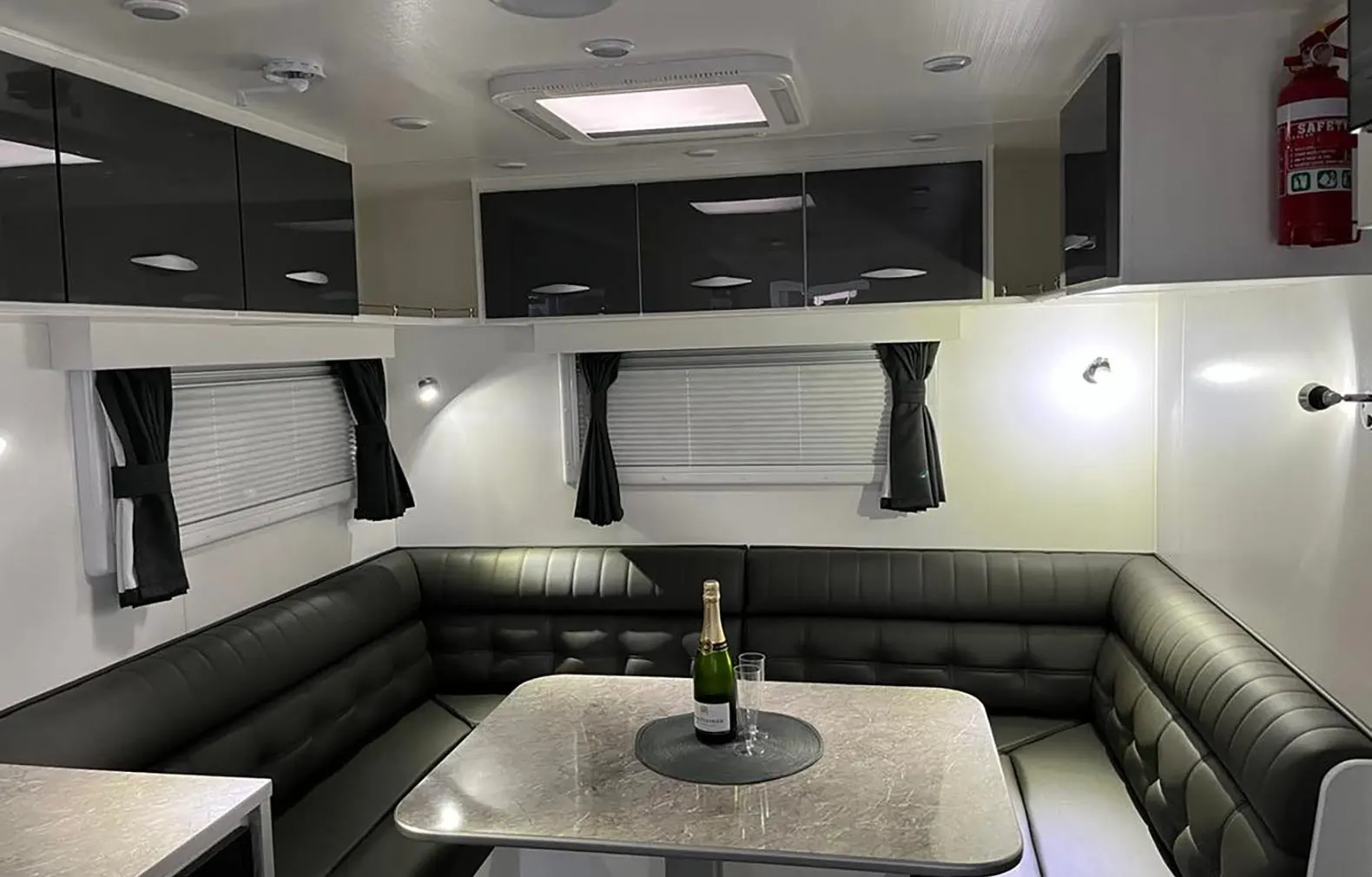

spirit caravans lounge
Bed Storage
spirit caravans bed storage

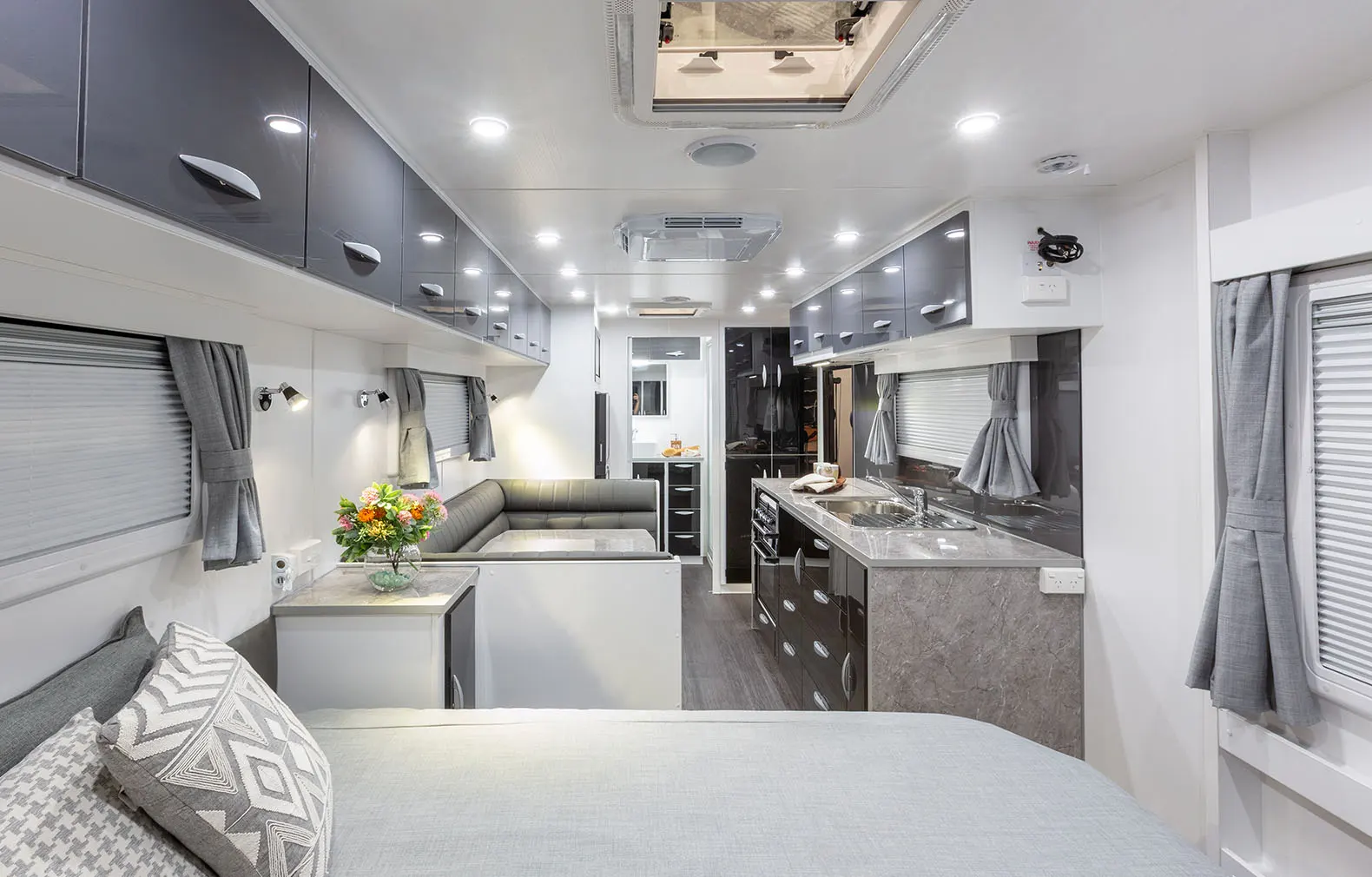

Kitchen & Bedroom

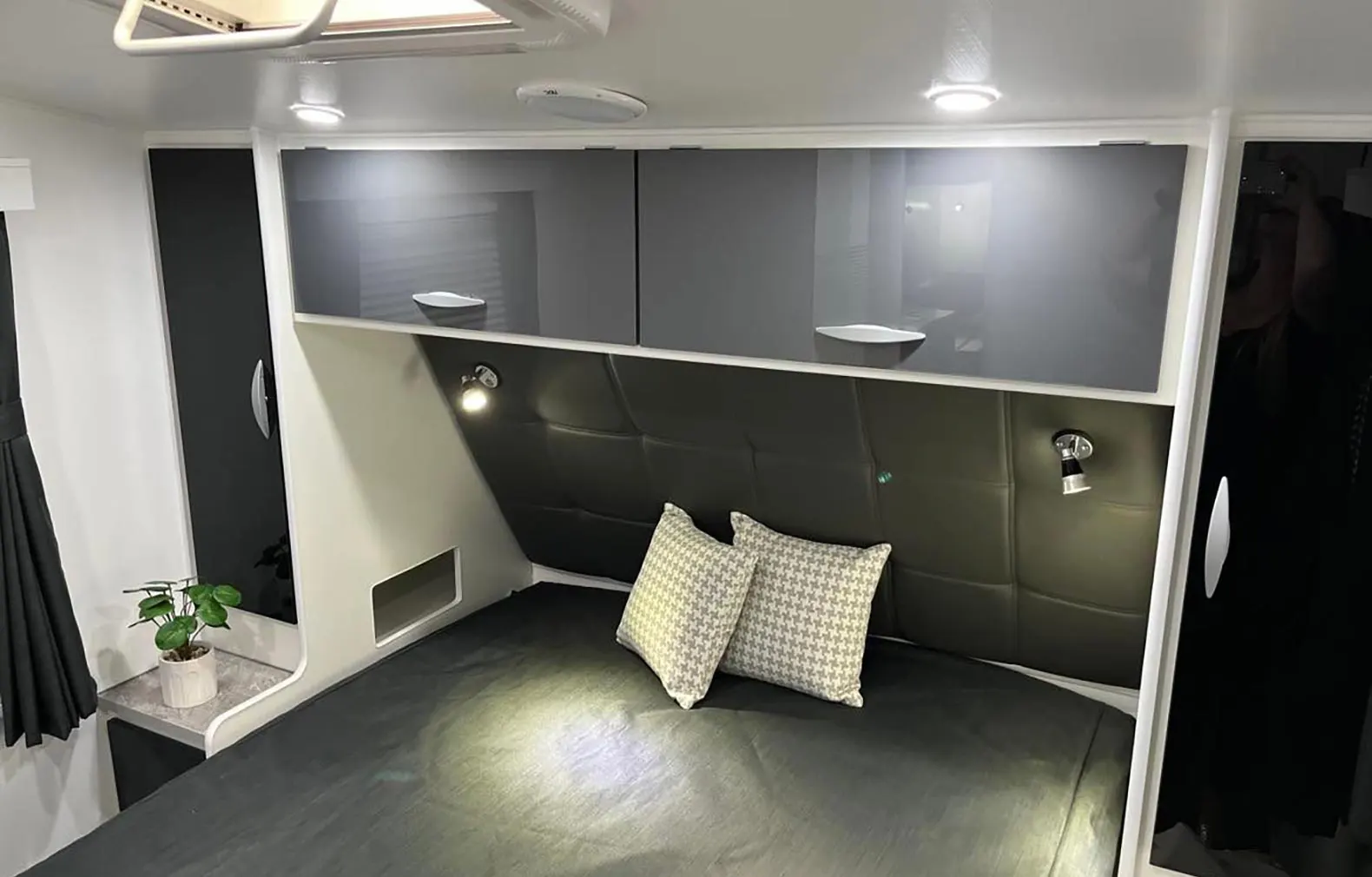

spirit caravans bedroom

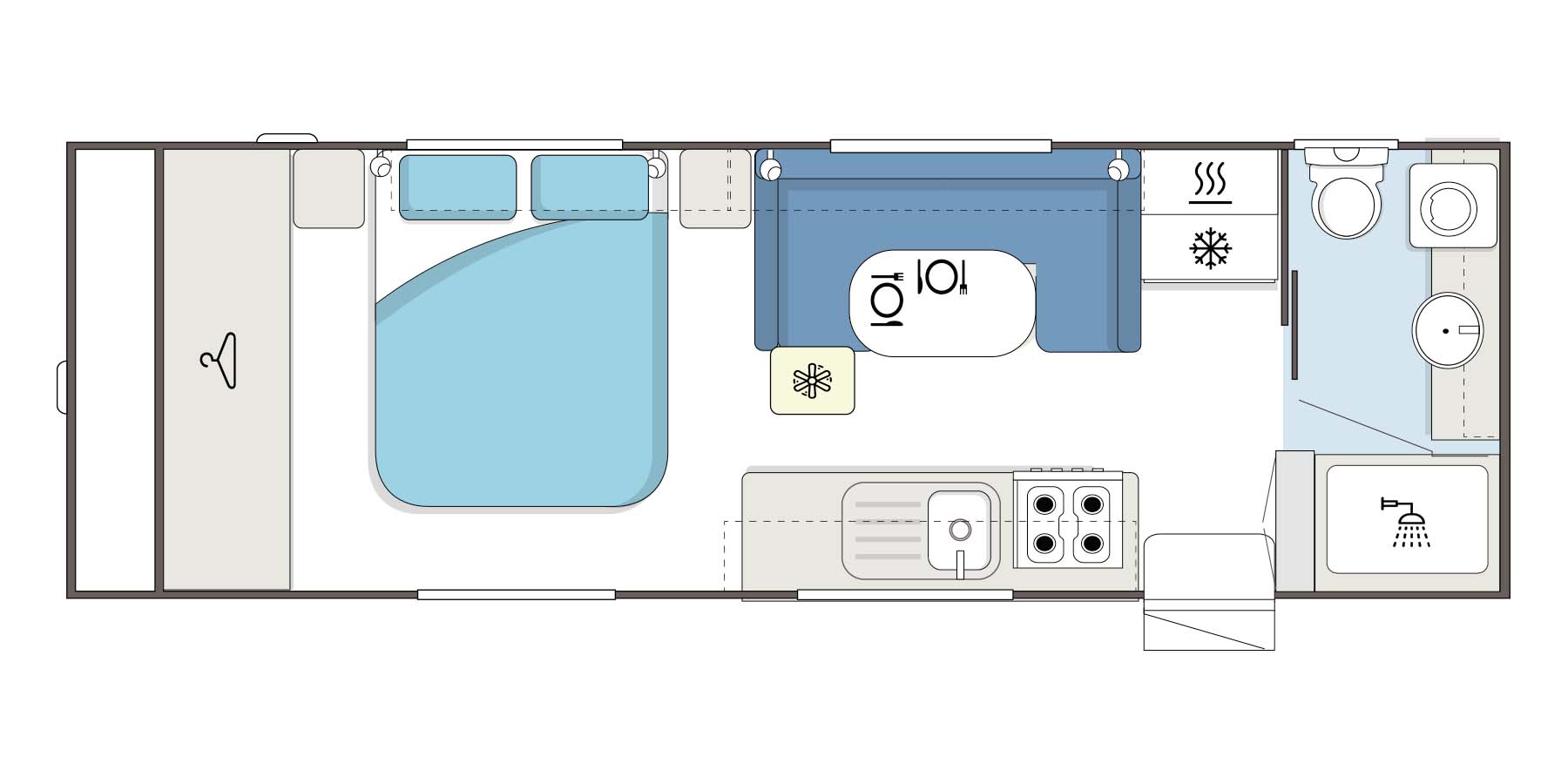

  • 2160 RTC
  • 2260 RTR
  • 2400 RTC
  • 2100 RTR SLIDE
  • 2300 RTR SLIDE
  • 2460 CTB SLIDE
measuring up
Overall length
8950
External body length
6620
External body width
2350
Travel height
2810
Internal height
1930

Notes: Travel heights based on Roller Rocker Suspension, Heights will vary according to Risers and independent Suspensions

Chassis
  • A-Frame - 150mm (6") (to spring hangers)
  • Riser - NO
  • Brakes - 10 inch
  • Wheels - 15" alloy 6 STUD
  • Coupling - Standard
  • Bumper Bar Arms - 4 arm (standard)
  • Spare Wheel - 1 bolted on bumper bar
  • Jerry can Holders - 2 bolted on bumper bar
  • Water Tanks - 2 x 80 Litres
  • Gas Bottles - 2 x 9kg
  • Pull out Step - Steel - Single Step
  • Mesh Tray - YES (under A-frame)
  • Stoneguard - NO
  • Toolbox - NO
  • Battery Pack - 1 in Boot
  • Additional information for chassis (if any) - NO ESC
External
  • Side Windows - MOBICOOL (chal)
  • Second Door - NO
  • Boot Door (SP2) - Black C\PLATE 450Hx1524W 2RC (BF)
  • Pebble Guard - Black C\plate
  • Side C\Plate - Black 485mm high (NF10)
  • Rear C\Plate - Black 1500mm off ground
  • C\Plate Panel (FR&BK) - Black
  • Insulation - Full
  • Front Aluminium - MANLY COLOUR SCHEME
  • Rear Aluminium - MANLY COLOUR SCHEME
  • Side Aluminium - MANLY COLOUR SCHEME
  • Roof Hatches - 2 x Dometic mini skylight (400x400)
  • Power Hatches - 2 x 12v (360x360)
  • Pressure Hatch - NO
  • Picnic Table - 1000 x 450 (black)
  • Galvanised sheet - NO
  • Tunnel Boot - 3/4 (1 x Access Door 505x505)
Appliances
  • Stove - Swift Holiday oven 3gas\1elec burner & grill (laminex lid)
  • Rangehood - Swift 12V - Flush Mount
  • Microwave - YES
  • Fridge - Dometic RM4605 AES (184 Litre)
  • Audio/Video - Touchscreen BT/USB/Audio-Video & 2 int. speakers
  • TV - Provision (Block & Fit TV arm only)
  • External Speakers - YES (2 speakers - fit low)
  • Air Conditioner - Air Command IBIS
  • Washing Machine - Dometic front loader (3kg capacity)
  • BBQ - NO
  • Heater - NO
  • Generator - NO
Electrical
  • Door Light - LED grab handle (500mm)
  • External P.Points - 1 x 240V & 1 x 12V (with USB port)
  • Car Plug - 12 pin flat
  • Anderson Plug - YES
  • rsattery Pack - 1 in Boot
  • Roof Antenna - Winegard (Sensar HV) freeview digital
  • Explorer TV Point - YES
  • External Lights - LED - NARVA
  • Internal Lights - LED - NARVA
  • Solar Power - 1 x 120W panel (Pro Star Controller)
  • Reversing Camera - NO
  • External TV - TV Box (With TV arm & Splitter)
  • Inverter - NO
  • Electric Breakaway System - Breaksafe Model BS6000
  • Water Gauge - For 2 tanks (LCD Multi Display)
  • ESC - NO ESC
Plumbing
  • H.W.S. - Swift Gas & Electric
  • Shower - Rectangular
  • External Shower - YES
  • Toilet - Thetford Swivel China Bowl
  • Sink Tap - YES (MIXER)
  • Sink - Ultimate Stainless Steel
  • Water Pump - 12V Shurflo
  • Water Filler - 2 x Lockable
  • Water Gauge - For 2 tanks (LCD Multi Display)
  • Water Filter - NO
  • External Tap - YES on A-Frame
  • BBQ Gas Point - YES
  • Grey Water Tank - NO
Colours
  • Wall Ply - White Gloss / White Plastic
  • En-Suite Wall Ply - White Gloss / White Plastic
  • Terylenes (Sheers) - Larren Pearl (all windows)
  • Venetians - NO
  • Decals - Black & Grey
  • J-Mould Insert - Black
Furniture Doors
  • DOOR HANDLES & CATCHES
  • LOWER C'BOARDS - Dorset Pull Handle V1295 (Satin)
  • DOOR HINGES - Standard Hinges
NOTES
  • 240V, 12V & USB POWER POINTS UNDER DINETTE/CAFE?
  • 200mm ZIP ON BED BOLSTER FOR BED EXTENSION
  • Tommy Table Leg - Layout Dependent
  • Reference Chassis No. - 0

Can you tow the Supreme Spirit Caravan?

Download the National Towing Guide to find your vehicle.
If you have any questions please contact your local Dealer.

standard inclusions
Multimedia Entertainment System

Multimedia Entertainment System

The touch screen DVD/MP3/MP4/Wave File system also offers a USB connection, Bluetooth and roof speakers

ample storage

Ample Storage

Take advantage of all the storage compartments, from external front boot to the space underneath the pull up bed

oven % burners

Full Oven, Grill & 4 Burners

Our caravans are fitted with a full size oven, grill and burners (3 gas and 1 electric) – all are Australian made

slide out BBQ

Slide Out BBQ

When you want to cook up some snags, slide the BBQ out from the side of the van and return it when finished

external speakers

External Speakers

Listen to music, the radio or even watch television outdoors with quality sound from 2 marine grade speakers

Ply Furniture

Lightweight Ply Furniture

Our furniture might be lightweight but it’s incredibly strong and won’t delaminate when wet – no chipboard here!

Porcelain Basin & Toilet

Porcelain Basin & Toilet

Don’t settle for plastic! Porcelain basins and toilets are not only easy to clean, they keep their looks too

Microwave

Microwave

Each van comes with a 23 litre microwave that runs off a generator and doubles as a mirror, cool!
